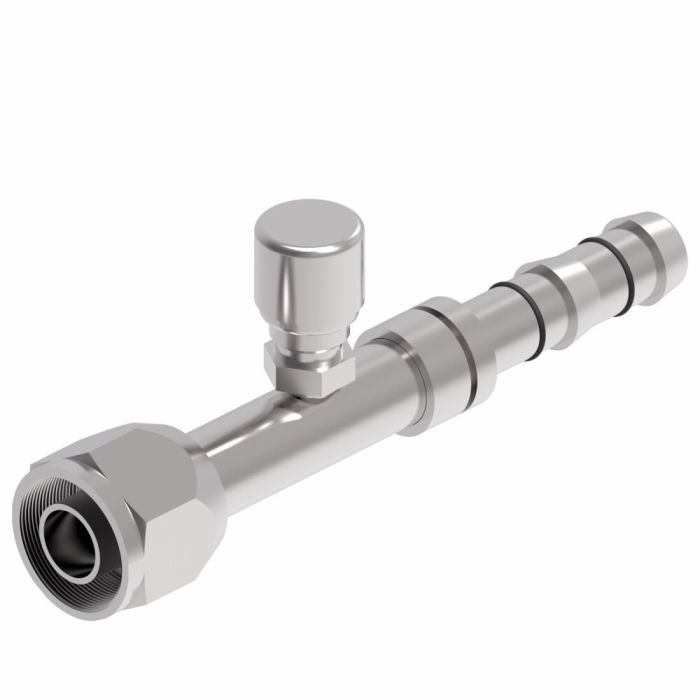

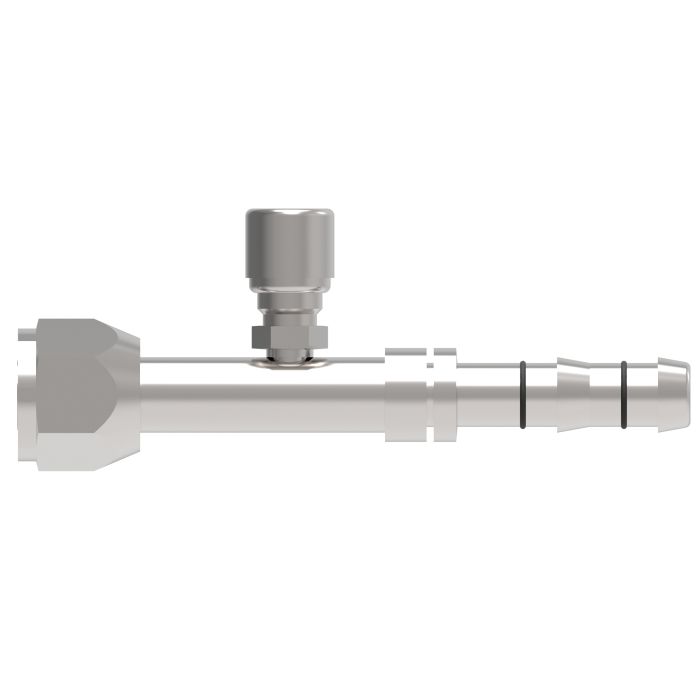

Aeroquip STR FEM O-Ring (LONG PILOT) W/R12 CHG Port

Ask A Question

Description & Features

Designed for automotive A/C refrigeration systems, the Aeroquip STR Fem O-Ring (Long Pilot) W/R12 CHG Port is a straight female O-ring fitting assembly built around the Eaton Aeroquip E-Z Clip system. Constructed from carbon steel, it features a long pilot configuration with an integrated R-12 charge port, making it well suited for refrigerant line connections where a switch port is required.

The fitting connects via a 7/16-20 UNF thread on the female end and accommodates a -10 dash size hose on the line side. The long pilot design aids in alignment during assembly, helping to cut assembly times in high-volume production environments. Its carbon steel construction provides reliable durability across a wide range of A/C refrigeration applications.

SKU: FJ3162-1010S

Supplier Part Number (MPN): FJ3162-1010S

Alternate Part Numbers: C1ZT25, MI-04069512, MINO-00015J59637

Specifications

Brand
Danfoss
a Dimensions
4-1/4 in
Compatible Hose ID
0.62 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Female Tube O-ring Long Pilot, Hose
Connection Type 1
Hose
Connection Type 2
Female Tube O-ring Long Pilot
Construction Style
Reusable
Cut-Off Factor
2-1/4 in
Dimensions
4.25 in L x 1.06 in W x 1.22 in H
End Gender 1
Female
End Size 1
7/8 in
Finish
Zinc-Plated
Fitting Type
Hose Fitting
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
1.06 in
Hose Dash Size
10
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
A
Series
FJ3162 Series
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14
Thread Type
UNF

Product Questions & Answers (3)

Question by: Brett W on Jun 25, 2025, 1:39 PM
what's the thread size on the female end of this fitting? trying to make sure it'll match up before I order
Answer by: Customer Support on Jun 26, 2025, 2:07 PM
The female end runs a 7/16-20 UNF thread. That's a pretty standard size for automotive A/C refrigeration work, so as long as your mating component matches that spec, you're good to go on that end.
Question by: Stan E on Feb 7, 2026, 6:26 AM
Will this here fitting work with my R12 A/C system okay?
Answer by: Customer Support on Feb 9, 2026, 6:10 AM
Designed specifically for automotive A/C refrigeration systems, this Aeroquip fitting includes an integrated R-12 charge port, so it should be just what you need for your R12 setup.
Question by: Hank K on Oct 4, 2025, 7:35 AM
got a -10 A/C hose and need a straight female o-ring end with the long pilot, is this the right one?
Answer by: Customer Support on Oct 5, 2025, 6:00 PM
For a -10 dash size hose, this fitting assembly matches that hose size and it is a straight female O-ring style with a long pilot. The female end uses a 7/16-20 UNF thread, so that thread needs to match what you are hooking into.
