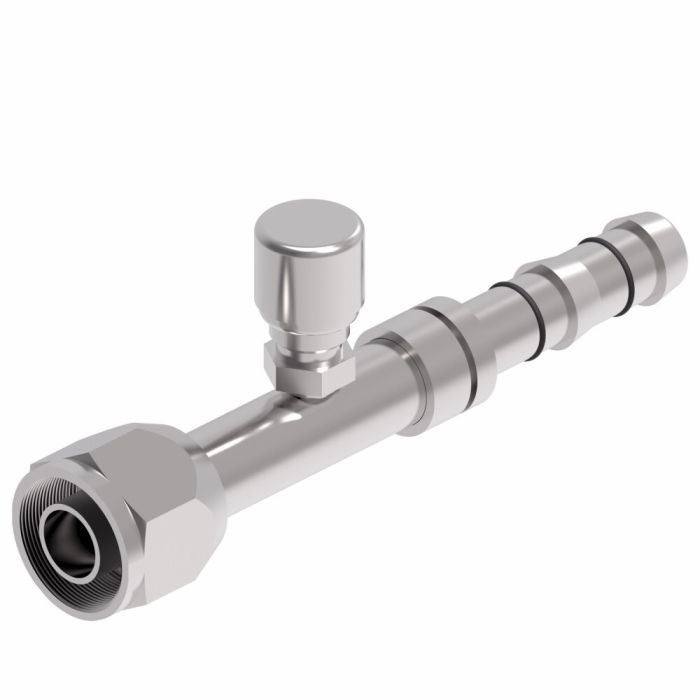

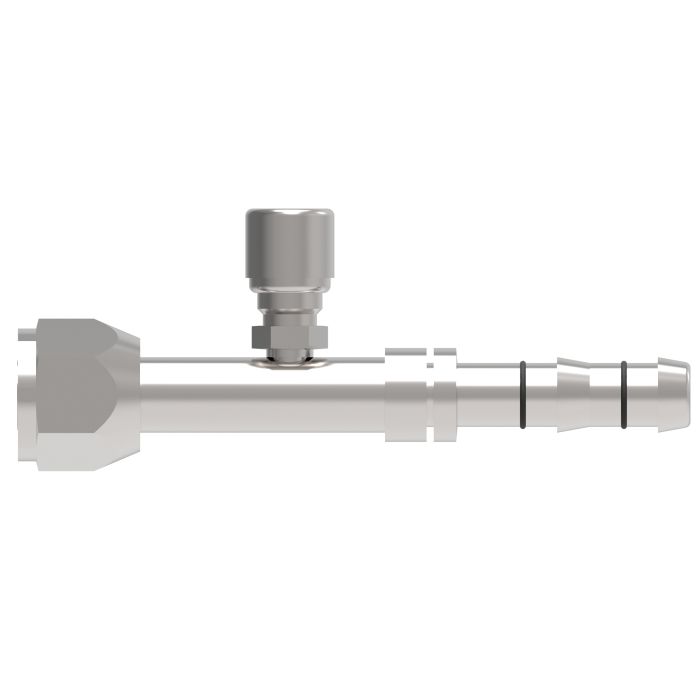

Aeroquip STR FEM O-Ring (LONG PILOT) W/R12 CHG Port

Ask A Question

Description & Features

Designed for reliability in demanding environments, the Aeroquip STR FEM O-Ring (LONG PILOT) W/R12 CHG Port offers exceptional compatibility and performance in hydraulic systems. Constructed from durable carbon steel, this female O-ring fitting features a long pilot design with a convenient switch port of size 7/16-20 UNF, enhancing its utility in diverse industrial applications. The fitting's robust design ensures a secure connection, making it an ideal choice for various hose, line, or tube assemblies. With a hose dash size of -12, it caters to a range of hydraulic needs, reducing assembly times and boosting production efficiency.

This fitting assembly, part of Eaton Aeroquip's renowned product lineup, integrates seamlessly into existing systems, delivering dependable performance. Its compatibility with a wide array of fluids is supported by available documentation, ensuring informed selection and use. The product's detailed technical documents and catalogs are readily accessible, providing additional insights into its specifications and applications.

SKU: FJ3162-1012S

Supplier Part Number (MPN): FJ3162-1012S

Alternate Part Numbers: C1FL72

Specifications

Brand
Danfoss
a Dimensions
4.27 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
5/8 in
Connection Type
Female Tube O-ring Long Pilot, Hose
Connection Type 1
Hose
Connection Type 2
Female Tube O-ring Long Pilot
Construction Style
Crimp
Cut-Off Factor
2-1/4 in
Dimensions
4.27 in L
End Gender 1
Female
End Size 1
7/8 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
1.06 in
Hose Dash Size
12
Inside Diameter
0.475 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
A
Series
FJ3162 Series
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14
Thread Type
UNF

Product Questions & Answers (1)

Question by: Brett L on Jun 10, 2025, 3:42 PM
what's the hose dash size on this fitting, and will it work with a -12 line setup?
Answer by: Customer Support on Jun 11, 2025, 8:10 PM
Right fit for a -12 hose dash size. The end connects at 7/16-20 UNF on the charge port side, and the other end is built for line, hose, or tube assemblies. Carbon steel construction means it holds up well in demanding hydraulic setups without giving you grief at the connection point.
