Aeroquip 90Deg Elbow FEM O-Ring (Short PILOT) W/R12 CHG PRT

Ask A Question

Description & Features

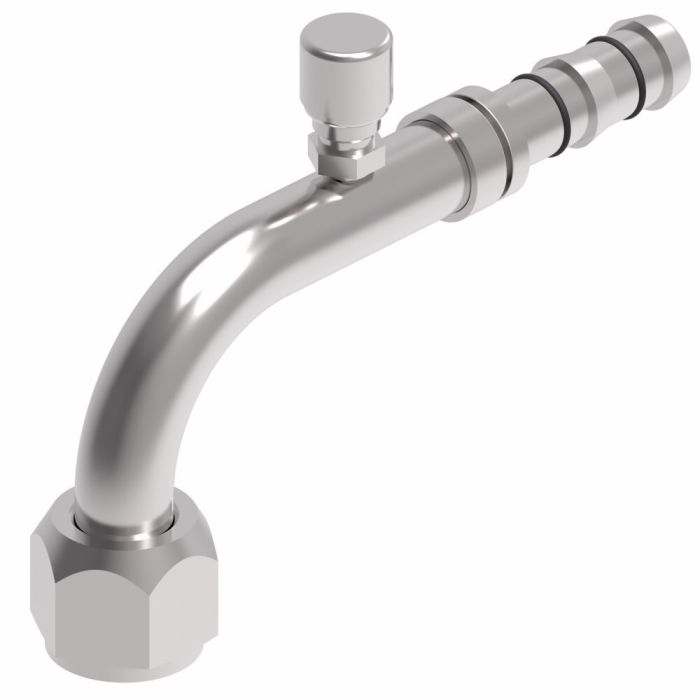

Designed for use in A/C refrigeration systems, this 90-degree elbow fitting features a female O-ring short pilot end with an integrated R12 charge port. Built to Eaton Aeroquip's E-Z Clip system standards, the Aeroquip 90Deg Elbow Fem O-Ring (Short Pilot) W/R12 Chg Prt is threaded at 7/16-20 UNF and accommodates a -10 hose dash size with a 0.875-inch end dimension.

Constructed from carbon steel, this fitting is suited to demanding refrigerant line applications where reliable sealing and consistent assembly performance are required. The short pilot O-ring configuration supports accurate positioning and a secure, leak-resistant connection. Sold individually, it is compatible with standard E-Z Clip system hose assemblies.

SKU: FJ3163-01-1010S

Supplier Part Number (MPN): FJ3163-01-1010S

Alternate Part Numbers: C1EY72

Specifications

Brand
Danfoss
a Dimensions
4.8 in
Compatible Hose ID
0.62 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Female Tube O-ring Long Pilot, Hose
Connection Type 1
Hose
Connection Type 2
Female Tube O-ring Long Pilot
Construction Style
Reusable
Cut-Off Factor
3-1/4 in
Dimensions
4.8 in L x 1.06 in W x 2.83 in H
Drop Dimensions
1.89 in
End Gender 1
Female
End Size 1
7/8 in
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
1.06 in
Hose Dash Size
10
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
A
Series
FJ3163 Series
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14
Thread Type
UNF

Similar Products

Model Number Connection Size 1 Connection Size 2 Hose Dash Size Price Action
Aeroquip 90Deg Elbow FEM O-Ring (Short P

FJ3163-02-1212S

3/4 in

3/4 in

12

Product Questions & Answers (4)

Question by: Cindy B on Jul 12, 2025, 12:31 PM
need to know what hose size this takes. and what type of threads on the female end?
Answer by: Customer Support on Jul 13, 2025, 9:58 PM
Matching a -10 dash size hose works perfectly for the line side of the elbow. For the female connection, you will find 0.875 UNF threads.
Question by: Lee B on Sep 17, 2025, 1:20 PM
got a -10 hose on the bench. is this the 90 degree elbow that matches that size?
Answer by: Customer Support on Sep 18, 2025, 8:34 PM
For hose sizing, it’s set up for a -10 hose dash size. It’s a 90 degree elbow fitting, so it’s meant to turn the line while staying in that -10 size range.
Question by: Bobby H on Sep 18, 2025, 3:00 PM
what refrigerant is this fitting made to work with, R12 specifically or does it handle other types too
Answer by: Customer Support on Sep 20, 2025, 8:46 AM
R12 is right there in the part name, so that's the refrigerant this fitting is built around. It's part of the Danfoss/Eaton E-Z Clip System for A/C refrigeration applications, and the charge port is specifically configured for R12 service. If you're running a different refrigerant, you'd want to verify compatibility before pulling the trigger on this one.
Question by: Sheila W on Jun 3, 2025, 2:48 PM
trying to swap out an old A/C hose end, is this one the 90 degree female o-ring short pilot style with a charge port?
Answer by: Customer Support on Jun 4, 2025, 5:06 PM
For that setup, you’re looking at a 90 degree elbow that uses a female O-ring connection with a short pilot, and this part includes an R12 charge port with 7/16-20 threads.
