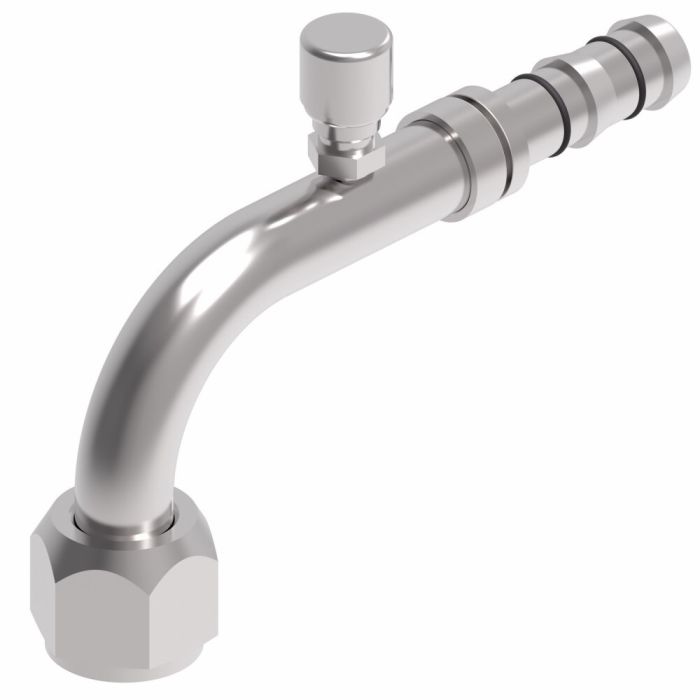

Aeroquip 90Deg Elbow FEM O-Ring (Short P

Ask A Question

Description & Features

Designed for robust performance, the Aeroquip 90Deg Elbow FEM O-Ring (Short P) is specifically engineered for demanding industrial applications. Crafted from durable carbon steel, this fitting ensures a reliable connection in hydraulic systems. Its female UNF end type and 7/16-20 charge port facilitate seamless integration with lines, hoses, or tubes, enhancing compatibility with various setups.

Notable for its efficient design, the 90-degree elbow reduces assembly time, thus boosting production efficiency. Its compact form makes it suitable for confined spaces while maintaining a strong, dependable seal. Part of the Danfoss / Eaton E-Z Clip System, this Aeroquip fitting is ideal for professionals seeking a balance of durability and ease of use in their hydraulic projects.

SKU: FJ3163-02-1212S

Supplier Part Number (MPN): FJ3163-02-1212S

Alternate Part Numbers: C1EY73

Specifications

Brand
Danfoss
a Dimensions
5.08 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Female Tube, Hose
Connection Type 1
Hose
Connection Type 2
Female Tube O-ring Short Pilot
Construction Style
Crimp
Cut-Off Factor
3-1/2 in
Drop Dimensions
2.56 in
End Gender 1
Female
End Size 1
12
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
GH134 Series Hoses
Hex Size
1-1/4
Hose Dash Size
12
Inside Diameter
0.475 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
C
Series
FJ3163 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-1/16-14
Thread Type
UN

Product Questions & Answers (1)

Question by: Harold G on May 31, 2025, 1:07 PM
Can this elbow fitting handle typical hydraulic pressures without failin?
Answer by: Customer Support on Jun 1, 2025, 3:49 PM
Designed for robust performance in demanding industrial applications, this Aeroquip elbow fitting is made from durable carbon steel, ensuring a reliable connection in hydraulic systems.
