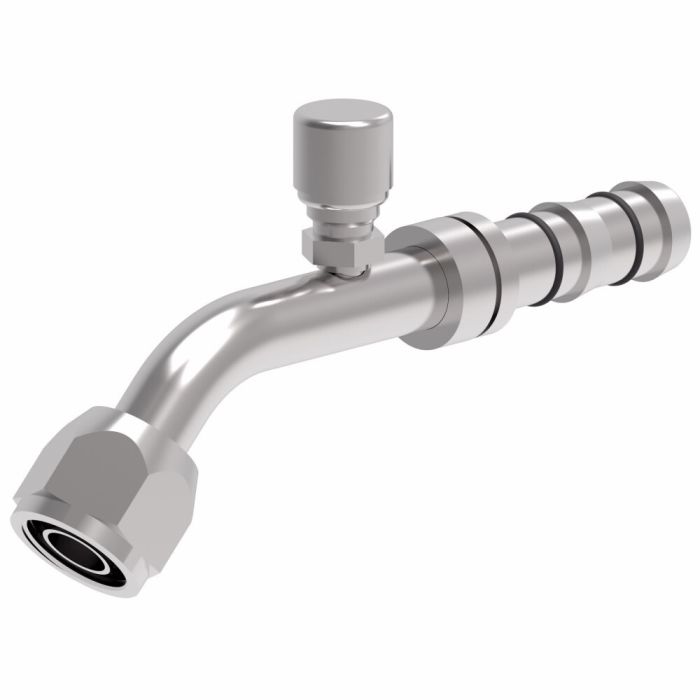

main product photo

AEROQUIP

Ask A Question

Description & Features

Engineered for versatility and reliability, the Eaton Aeroquip E-Z Clip System Female O-ring Long Pilot with Switch Port is an essential component for efficient A/C refrigeration systems. Crafted from durable carbon steel, this fitting ensures long-lasting performance even in demanding applications. With a 7/16-20 thread size and a 45-degree elbow design, it facilitates streamlined connections while accommodating a wide range of hoses and lines.

This nipple assembly is designed to reduce assembly times and boost production efficiency. Its female SAE end type and hose dash size of -10 make it compatible with many industrial setups. The product's robust design also includes a switch port, enhancing its functionality for complex systems. For further technical details, consult Eaton's comprehensive documentation linked on the product page.

SKU: FJ3230-01-0810S

Supplier Part Number (MPN): FJ3230-01-0810S

Alternate Part Numbers: C1FL75

Specifications

Brand
Danfoss
a Dimensions
4.61 in
Compatible Hose ID
0.63 in
Connection Size 1
5/8 in
Connection Size 2
1/2 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female 37 deg Swivel
Construction Style
Crimp
Cut-Off Factor
2.583 in
Drop Dimensions
1 in
End Gender 1
Female
End Size 1
3/4 in
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
7/8 in
Hose Dash Size
10
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
C
Series
FJ3230 Series
Thread Sealant
Without Thread Sealant
Thread Size
3/4-16
Thread Type
UNF

Product Questions & Answers (2)

Question by: Carl O on Nov 1, 2025, 6:04 AM
got a -10 hose setup, will this nipple assembly actually match up with that size?
Answer by: Customer Support on Nov 3, 2025, 6:07 AM
For hose sizing, it is built around a -10 hose dash size, so it is intended to pair with -10 hose assemblies.
Question by: Clint H on Mar 8, 2026, 7:58 PM
what's the thread size on this fitting and what kind of end connection does it use on the hose side?
Answer by: Customer Support on Mar 10, 2026, 6:03 AM
Thread size is 7/16-20, and the hose end is a -10 dash size. The fitting end uses a female SAE connection, while the opposite end is designed for line, hose, or tube attachment. The 45-degree elbow geometry helps keep routing clean when space is tight or when a straight connection just won't lay right.
