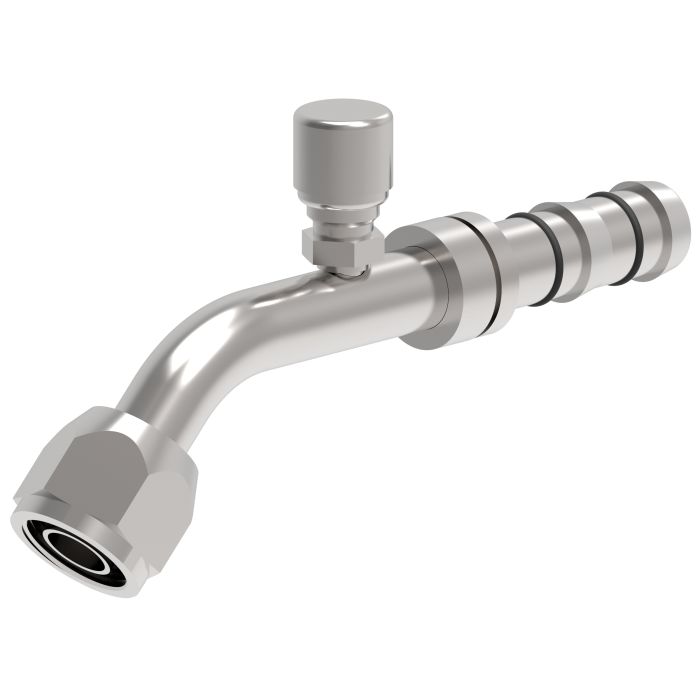

main product photo

AEROQUIP

Ask A Question

Description & Features

This Eaton Aeroquip nipple assembly features a female end gender and a -8 hose dash size.

Constructed from carbon steel, this durable and dependable fitting is suitable for a wide range of applications and is designed to cut assembly times and boost production. It features a 0.75 SAE end type 1 and a line/hose/tube end type 2. The drop dimension is 0.7300 and the product width is 0.88.

SKU: FJ3230-03-0808S

Supplier Part Number (MPN): FJ3230-03-0808S

Alternate Part Numbers: C1FL77, MI-08749255, MINO-00015X89593

Specifications

Brand
Danfoss
a Dimensions
4.93 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female 37 deg Swivel
Construction Style
Crimp
Cut-Off Factor
2.4 in
Drop Dimensions
1 in
End Gender 1
Female
End Size 1
3/4 in
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
7/8 in
Hose Dash Size
08
Inside Diameter
0.32 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
A
Series
FJ3230 Series
Thread Sealant
Without Thread Sealant
Thread Size
3/4-16
Thread Type
UNF

Product Questions & Answers (2)

Question by: Lee P on Sep 7, 2025, 6:43 AM
Trying to match up fittings here. Is this a -8 hose dash nipple assembly with a 0.75 SAE female end?
Answer by: Customer Support on Sep 9, 2025, 6:58 AM
For fit and sizing, it is a nipple assembly with a female end, a -8 hose dash size, and End Type 1 listed as SAE with an End Size 1 of 0.75.
Question by: Harvey S on Apr 30, 2025, 3:09 PM
what's this fitting made out of, and will it hold up in a shop environment with regular use?
Answer by: Customer Support on May 2, 2025, 3:08 PM
Carbon steel construction on this one, so it handles the wear and demands of regular shop use without issue. Eaton Aeroquip built it to be durable and dependable, and that reputation holds up across a wide range of applications. For a standard industrial or hydraulic shop setting, the material is well suited to the job.
