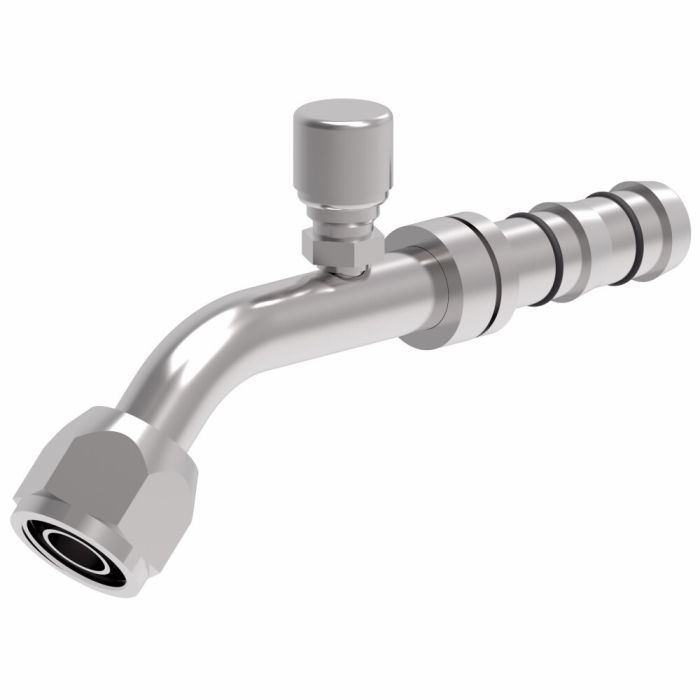

main product photo

AEROQUIP

Ask A Question

Description & Features

Designed for A/C refrigeration circuits, this carbon steel nipple assembly from Aeroquip is built for the Eaton E-Z Clip System and features a female O-ring long pilot end with a switch port. The 45-degree elbow configuration suits installations where straight connections are impractical, and the 7/16-20 thread size makes it compatible with standard SAE fittings in this class.

Rated for a -10 hose dash size with an end size of 0.875 in., this fitting is suited to a wide range of industrial refrigeration and A/C system connections. Carbon steel construction provides reliable durability under cyclic pressure conditions. The E-Z Clip design is engineered to reduce assembly time, making it a practical choice for production environments where throughput matters.

SKU: FJ3230-04-1010S

Supplier Part Number (MPN): FJ3230-04-1010S

Alternate Part Numbers: C1FL78, MI-08749258, MINO-00015X89594

Specifications

Brand
Danfoss
a Dimensions
5 in
Compatible Hose ID
0.63 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female 37 deg Swivel
Construction Style
Crimp
Cut-Off Factor
2.97 in
Drop Dimensions
1 in
End Gender 1
Female
End Size 1
7/8 in
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
1.06 in
Hose Dash Size
10
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
C
Series
FJ3230 Series
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14
Thread Type
UNF

Product Questions & Answers (3)

Question by: Ray W on Dec 22, 2025, 2:36 PM
Got a 45-degree elbow fitting I need to swap out on an A/C refrigeration line. This one's for the E-Z Clip system with a -10 hose size and 7/16-20 thread. The FJ3230-04-1010S match up to what I got?
Answer by: Customer Support on Dec 23, 2025, 3:40 PM
For E-Z Clip builds running a -10 hose dash size with 7/16-20 thread and a female O-ring long pilot end, this nipple assembly lines right up. The 45-degree elbow config and 0.875 in. end size are both part of what this fitting brings to the table, so if your existing setup matches those specs, you're looking at a solid replacement. Carbon steel construction means it holds up well under the kind of cyclic pressure conditions typical in refrigeration circuits.
Question by: Rick B on Jan 18, 2026, 3:20 PM
Reckon this'll hold up to the constant pressure changes in a refrigeration system?
Answer by: Customer Support on Jan 20, 2026, 12:46 PM
Carbon steel construction provides reliable durability under cyclic pressure conditions. This nipple assembly should hold up just fine.
Question by: Curt S on May 25, 2025, 8:55 PM
got a -10 hose on an A/C line, is this the right elbow to swap in?
Answer by: Customer Support on May 27, 2025, 8:51 PM
For a -10 hose dash size in an A/C or refrigeration circuit, this Aeroquip nipple assembly matches that hose size and uses a 45 degree elbow layout. It is built for the Eaton E-Z Clip System and has a female O-ring long pilot end with a switch port, so it fits setups that need that style of end.
