AEROQUIP FITTING

Ask A Question

Description & Features

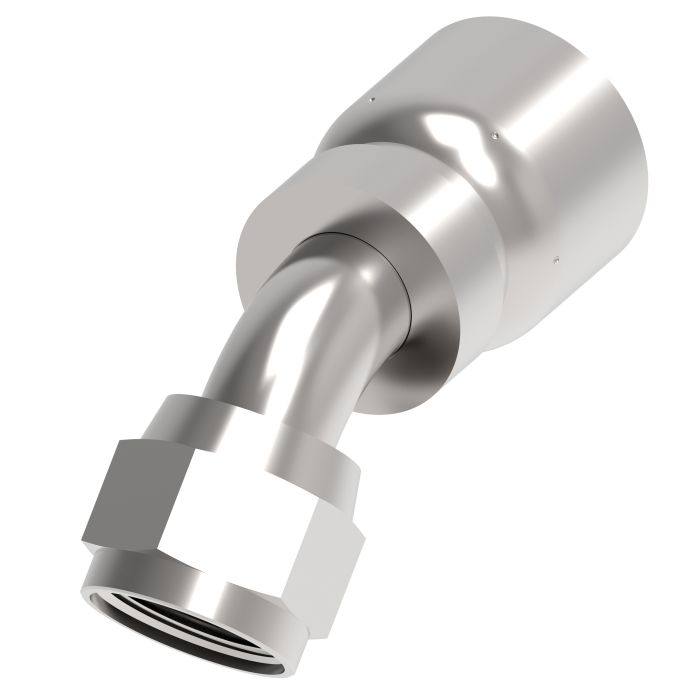

Part of the Aeroquip FJ3243 Series, this carbon steel crimp hose fitting is configured as a universal swivel 45° elbow, designed for use in hydraulic hose assemblies requiring angled routing with a female swivel end. The universal swivel design allows for angular adjustment during installation, reducing stress on the hose and connected components.

Finished with Dura-Kote plating, the fitting offers strong corrosion resistance suited to demanding industrial environments. The FJ3243 Series is system-engineered to extend hose assembly service life, with a design focused on consistent performance and reduced downtime in hydraulic circuits.

SKU: FJ3243-0505S

Supplier Part Number (MPN): FJ3243-0505S

Specifications

a Dimensions
1.79 in
Compatible Hose ID
0.31 in
Connection Size 1
5/16 in
Connection Size 2
5/16 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 45 deg/37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
0.99 in
Drop Dimensions
0.358 in
End Connection Torque
14 to 15 lb-ft
End Gender 1
Female
End Size 1
05
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
H104, H145, H145R, H190, H190H, H245, H245L, H280, H290, H290H, H290L, H345, H350, H400, H421, H425, H1777 (-04, -06, 08), H1776 (-04 thru -20), H1571 (-12 only), H6002 (-08, -12, -16), H6008 (-16 & -20), H6009 (-20 only), H9622 (-12, -16, -20), H265 (-04
Hex Size
0.63 in
Hose Dash Size
05
Inside Diameter
1-3/16 in
Material
Steel
Material Construction
Carbon Steel
Series
FJ3243 Series
Thread Sealant
Without Thread Sealant
Thread Size
1/2-20
Thread Type
UNF

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Daryl K on Apr 1, 2026, 7:24 PM
Hey, will this fitting hold up okay in a hydraulic setup that sees a lot of outdoor use and gets kinda wet sometimes?
Answer by: Customer Support on Apr 3, 2026, 12:14 PM
Dura-Kote plating on this Aeroquip fitting gives it good corrosion resistance, so it should be suitable for demanding industrial environments, even with some exposure to moisture.
