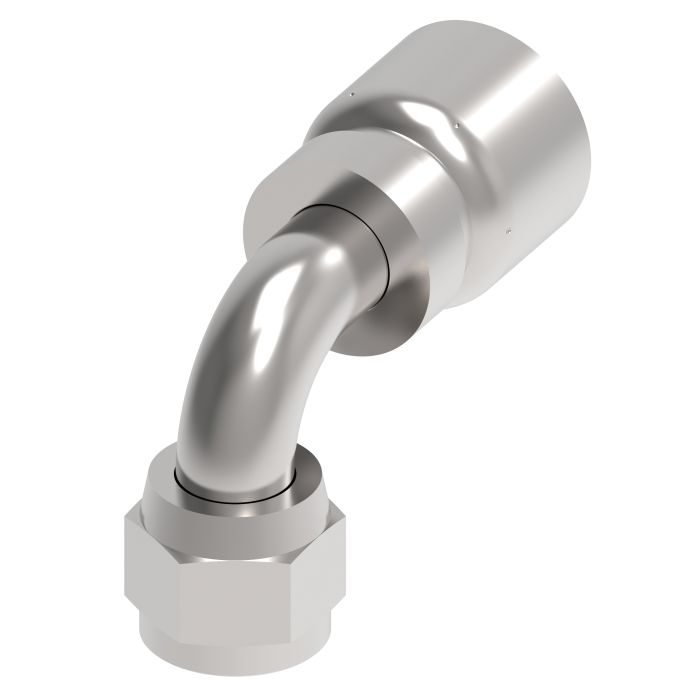

AEROQUIP 90DEG 1/4 FJIC TO -5 HOSE

Ask A Question

Description & Features

This Eaton Aeroquip fitting assembly features a 90-degree elbow and a 1/4" FJIC to -5 hose connection.

Constructed from carbon steel with Dura-Kote plating, this AEROQUIP 90DEG 1/4 FJIC TO -5 HOSE provides superior corrosion resistance and delivers reliable performance. Its innovative design is system engineered to extend hose assembly life and maximize uptime.

SKU: FJ3244-0405S

Supplier Part Number (MPN): FJ3244-0405S

Alternate Part Numbers: C1FH34

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
1.62 in
Compatible Hose ID
0.31 in
Connection Size 1
5/16 in
Connection Size 2
1/4 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 45 deg/37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
0.83 in
Dimensions
1.62 in L
Drop Dimensions
0.68 in
End Connection Torque
11 to 12 lb-ft
End Gender 1
Female
End Size 1
7/16 in
Finish
Protective Oil
Fitting Type
90 deg Elbow
For Use With
1503, FC234, FC300, FC350 and FC355 Series Hoses
Hex Size
0.563 in
Hose Dash Size
05
Inside Diameter
0.15 in
Material
Steel
Material Construction
Carbon Steel
Series
FJ3244 Series
Thread Sealant
Without Thread Sealant
Thread Size
7/16-20
Thread Type
UNF

Similar Products

Model Number Connection Size 1 Connection Size 2 Connection Type 2 Hose Dash Size Price Action
Steel Crimp 1 Wire Braid Reduced Bore Fitting, 7/16-20 Female JIC 37 deg Flare Swivel, -04 Hose, 90 deg Elbow

FJ3244-0404S Steel Crimp JIC Fitting

1/4 in

1/4 in

Female SAE 45 deg/37 deg JIC Swivel

04

Steel Crimp 1 Wire Braid Reduced Bore Fitting, 1-5/8 - 12 Female JIC 37 deg Flare Swivel, -20 Hose, 90 deg Elbow

FJ3250-2020S Steel Crimp JIC Fitting

1-1/4 in

1-1/4 in

Female SAE 37 deg JIC Swivel

20

Steel Crimp 1 Wire Braid Reduced Bore Fitting, 3/4-16 Female JIC 37 deg Flare Swivel, -08 Hose, 90 deg Elbow

FJ3244-0808S Steel Crimp JIC Fitting

1/2 in

1/2 in

Female SAE 45 deg/37 deg JIC Swivel

08

Steel Crimp 1 Wire Braid Reduced Bore Fitting, 7/8-14 Female JIC 37 deg Flare Swivel, -10 Hose, 90 deg Elbow

FJ3244-1010S Steel Crimp JIC Fitting

5/8 in

5/8 in

Female SAE 45 deg/37 deg JIC Swivel

10

Steel Crimp 1 Wire Braid Reduced Bore Fitting, 1-5/16 - 12 Female JIC 37 deg Flare Swivel, -16 Hose, 90 deg Elbow

FJ3250-1616S Steel Crimp JIC Fitting

1 in

1 in

Female SAE 37 deg JIC Swivel

16

Steel Crimp 1 Wire Braid Reduced Bore Fitting, 1-1/16 - 12 Female JIC 37 deg Flare Swivel, -12 Hose, 90 deg Elbow

FJ3250-1212S Steel Crimp JIC Fitting

3/4 in

3/4 in

Female SAE 37 deg JIC Swivel

12

Steel Crimp 1 Wire Braid Reduced Bore Fitting, 9/16-18 Female JIC 37 deg Flare Swivel, -06 Hose, 90 deg Elbow

FJ3250-0606S Steel Crimp JIC Fitting

3/8 in

3/8 in

Female SAE 37 deg JIC Swivel

06

Aeroquip 90Deg 1/2 FJIC TO -10Hose

FJ3244-0810S

5/8 in

1/2 in

Female SAE 45 deg/37 deg JIC Swivel

10

AEROQUIP 90DEG 3/8 FJIC TO -8 HOSE

FJ3250-0608S

1/2 in

3/8 in

Female SAE 37 deg JIC Swivel

08

Product Questions & Answers (2)

Question by: Daryl E on Jul 25, 2025, 8:04 AM
got a -5 hose on the truck and need a 90 to tuck it in tight. is this the one with a 1/4 female JIC on the other end?
Answer by: Customer Support on Jul 26, 2025, 3:43 PM
For a tight 90-degree turn, this fitting assembly matches a -5 hose on one side and a 1/4 inch female JIC (SAE) connection on the other.
Question by: Freddie T on Nov 15, 2025, 1:09 PM
Got a hose end that's beat up and needs replacing, this the right fit for a -5 hose with a 1/4 FJIC female on the other side?
Answer by: Customer Support on Nov 17, 2025, 6:58 AM
Yeah, that lines up exactly with what this fitting does. It's a 90-degree elbow assembly that connects a 1/4" female JIC end to a -5 hose end, so if your existing setup uses those two sizes, this one should drop right in. The part number is FJ3244-0405S, also listed as C1FH34 if you're cross-referencing older paperwork.
