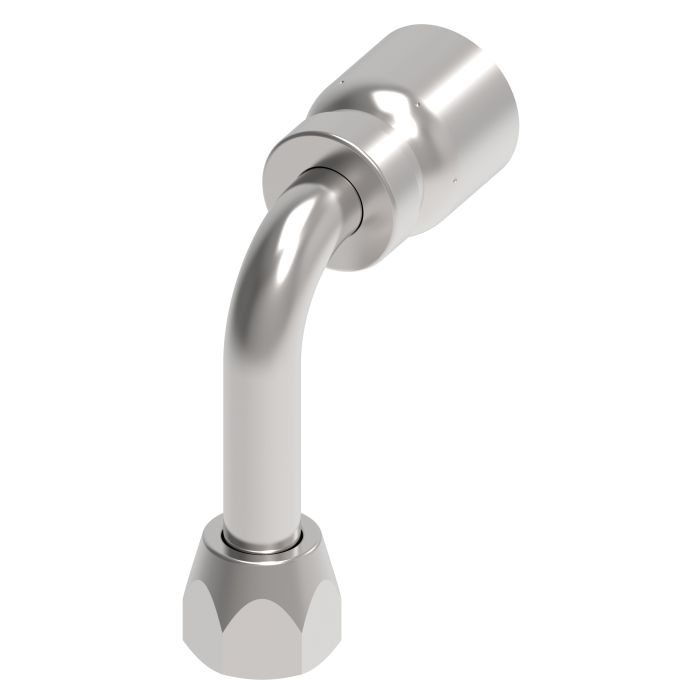

main product photo

AEROQUIP FITTING

Ask A Question

Description & Features

This Aeroquip fitting is a 90° long drop elbow with a universal swivel. It features Dura-Kote plating for superior corrosion resistance and an innovative design to deliver performance and maximum uptime, extending hose assembly life.

The carbon steel fitting assembly has a female end with 0.75 UNF threads for connection. The other end is designed for connection to a line, hose, or tube. The drop dimension is 2.4300 inches and the product width is 0.88 inches.

SKU: FJ3245-0808S

Supplier Part Number (MPN): FJ3245-0808S

Specifications

a Dimensions
2.19 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 45 deg/37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
1.39 in
Drop Dimensions
2.43 in
End Connection Torque
33 to 40 lb-ft
End Gender 1
Female
End Size 1
3/4 in
Finish
Protective Oil
Fitting Type
90 deg Elbow
For Use With
H250H Series Hoses
Hex Size
0.87 in
Hose Dash Size
08
Inside Diameter
0.28 in
Material
Steel
Material Construction
Carbon Steel
Segment Code
A
Series
FJ3245 Series
Thread Sealant
Without Thread Sealant
Thread Size
3/4-16
Thread Type
UNF

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Scott R on Sep 13, 2025, 4:51 PM
Will this fitting hold up to some corrosion? I'm using it in a kinda damp place.
Answer by: Customer Support on Sep 15, 2025, 6:31 AM
Dura-Kote plating gives this Aeroquip fitting some pretty good corrosion resistance. So it should hold up well.
