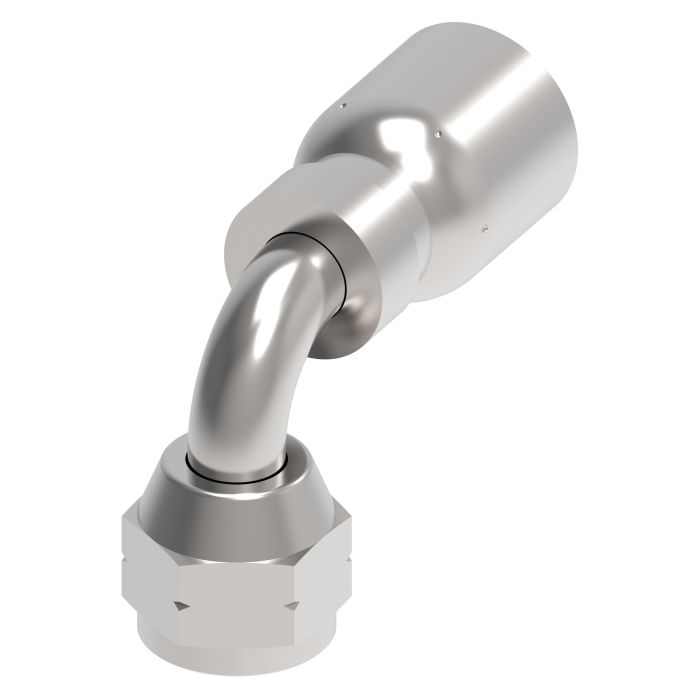

main product photo

FTG-P DIN1S/SAER1 SAE 45 R5 FTG 45 SWIV

Ask A Question

Description & Features

Designed for hydraulic hose assemblies requiring a directional change at the fitting, this carbon steel swivel elbow from Eaton Aeroquip connects a -6 dash size hose to a 5/8 in. SAE 90° female end. The FTG-P DIN1S/SAER1 SAE 45 R5 FTG 45 SWIV features a 45° SAE swivel configuration that accommodates line routing while allowing rotational adjustment during installation and maintenance.

Built to Aeroquip's FJ3247 Series crimp fitting standards, the fitting carries Dura-Kote plating for corrosion resistance in demanding industrial environments. The design is engineered to extend hose assembly service life and support maximum uptime. At 0.75 in. wide with a 0.85 in. drop dimension, it is a compact assembly suited for tight routing situations.

SKU: FJ3247-0606S

Supplier Part Number (MPN): FJ3247-0606S

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
1.84 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Female SAE Flared Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 45 deg Swivel
Construction Style
Crimp
Cut-Off Factor
1.05 in
Dimensions
2.02 in L x 0.75 in W x 1.69 in H
Drop Dimensions
0.85 in
End Gender 1
Female
End Size 1
5/8 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
H104, H145, H145R, H190, H190H, H245, H245L, H280, H290, H290H, H290L, H345, H350, H400, H421, H425, H1777 (-04, -06, 08), H1776 (-04 thru -20), H1571 (-12 only), H6002 (-08, -12, -16), H6008 (-16 & -20), H6009 (-20 only), H9622 (-12, -16, -20), H265 (-04
Hex Size
3/4 in
Hose Dash Size
06
Inside Diameter
0.23 in
Material
Steel
Material Construction
Carbon Steel
Segment Code
A
Series
FJ3247 Series
Thread Sealant
Without Thread Sealant
Thread Size
5/8-18
Thread Type
UNF

Product Questions & Answers (3)

Question by: Dwayne S on Jul 1, 2025, 8:01 AM
Will this fitting hold up if its runnin hydraulic fluid all day long?
Answer by: Customer Support on Jul 2, 2025, 3:47 PM
Dura-Kote plating gives this fitting good corrosion resistance, so it should be able to handle continuous hydraulic fluid exposure in most industrial settings.
Question by: Harold O on Dec 23, 2025, 2:52 PM
got a -6 hose and need to kick the line over some, is this the elbow that’ll do it?
Answer by: Customer Support on Dec 25, 2025, 2:34 PM
For a -6 dash hydraulic hose assembly where you need a directional change, this fitting is a 45 degree SAE swivel elbow. It connects the hose side to a 5/8 inch SAE 90 female end, and the swivel lets you rotate it to line things up during install.
Question by: Todd R on Jun 18, 2025, 4:31 PM
fitting's got a 45° swivel on it, does that mean I can rotate it after the hose is crimped on, or is it fixed once everything's torqued down?
Answer by: Customer Support on Jun 19, 2025, 6:12 PM
The swivel feature is specifically there to let you make rotational adjustments during installation and maintenance, so you're not locked into one position once the hose is crimped. That makes a real difference when you're trying to route lines in a tight space and need a little give to get everything lined up without putting stress on the assembly.
