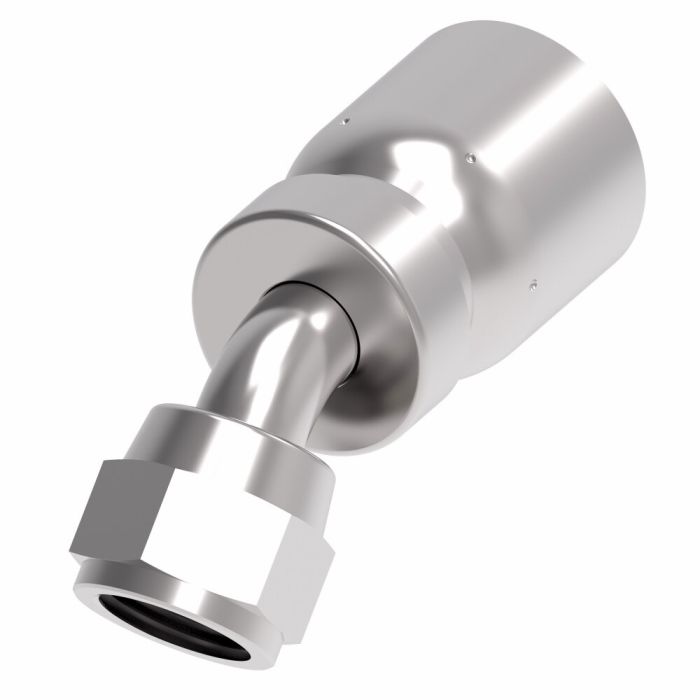

Aeroquip Crimp Fitting (Perm) R5 37 JIC

Ask A Question

Description & Features

The Aeroquip Crimp Fitting (Perm) R5 37 JIC from Danfoss Power Solutions guarantees robust performance in demanding industrial environments. Constructed from high-quality carbon steel this fitting offers exceptional durability.

The Dura-Kote plating provides superior corrosion resistance ensuring long-term reliability even in harsh conditions.

This innovative fitting is system engineered to extend hose assembly life optimizing uptime and reducing maintenance requirements.

Designed with a female SAE 37 end and suitable for line hose or tube applications it ensures a secure and efficient connection. The drop dimension of 1.2200 and product width of 1.67 contribute to its compact and adaptable design.

Supplier Part Number: FJ3249-2020S

Specifications

a Dimensions
3.85 in
Compatible Hose ID
1-1/4 in
Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
2.59 in
Dimensions
3.96 in L x 1.67 in W x 3.69 in H
Drop Dimensions
1.22 in
End Gender 1
Female
End Size 1
20
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
H104, H145, H145R, H190, H190H, H245, H245L, H280, H290, H290H, H290L, H345, H350, H400, H421, H425, H1777 (-04, -06, 08), H1776 (-04 thru -20), H1571 (-12 only), H6002 (-08, -12, -16), H6008 (-16 & -20), H6009 (-20 only), H9622 (-12, -16, -20), H265 (-04
Hex Size
2 in
Hose Dash Size
20
Inside Diameter
0.975 in
Material
Steel
Material Construction
Carbon Steel
Series
FJ3249 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-5/8-12
Thread Type
UN

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Vince M on Mar 27, 2026, 3:58 PM
Can I use this fitting for somethin other than just hoses? Like, could it work with a metal tube too?
Answer by: Customer Support on Mar 29, 2026, 7:25 AM
Yes, this Aeroquip crimp fitting is suitable for both line hose and tube applications.
Question by: Sherry W on Mar 9, 2026, 5:46 PM
got a hose that takes a -20 dash crimp end, is this the right Aeroquip fitting for that?
Answer by: Customer Support on Mar 11, 2026, 6:36 AM
For a -20 hose dash size, this crimp fitting matches that size callout and it is a permanent style fitting assembly meant to be crimped onto the hose.
Question by: Tony G on May 10, 2025, 8:55 PM
fitting's made of carbon steel, does it hold up alright against rust and moisture over time?
Answer by: Customer Support on May 12, 2025, 6:56 AM
Carbon steel on its own can be vulnerable to corrosion, but this fitting uses Dura-Kote plating specifically to counter that. It's built to hold up in harsh conditions where moisture and contaminants are a regular concern, so long-term reliability shouldn't be an issue in most working environments.
