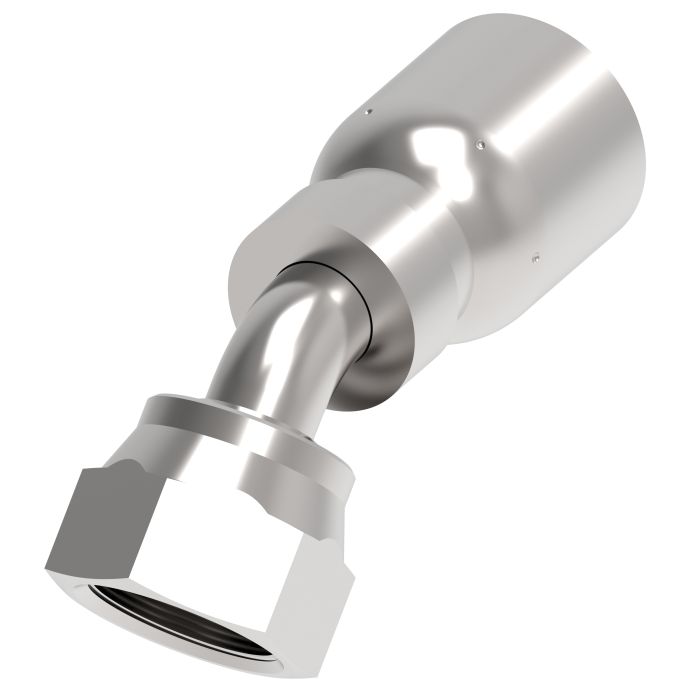

main product photo

Ftng (perm), R5

Ask A Question

Description & Features

A 45-degree swivel elbow configuration makes this carbon steel crimp hose fitting well suited for hydraulic hose routing in space-constrained assemblies. The Ftng (perm), R5 is part of the Eaton Aeroquip FJ3254 Series and features a female UN swivel end with a 0.5625-inch thread size on one side and a -4 dash size hose end on the other, with a drop dimension of 0.4400 inches.

Dura-Kote plating provides corrosion resistance suited to demanding industrial environments. The fitting is system-engineered as part of Aeroquip's permanent crimp assembly design, which is intended to extend hose assembly service life and support maximum uptime. Constructed from carbon steel and sold individually, this fitting is compatible with corresponding Aeroquip crimp tooling and hose specifications for the -4 hose dash size range.

SKU: FJ3254-0404S

Supplier Part Number (MPN): FJ3254-0404S

Specifications

Brand
Weatherhead® by Danfoss
a Dimensions
1.83 in
Compatible Hose ID
1/4 in
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Crimp
Cut-Off Factor
1.57 in
Drop Dimensions
0.44 in
End Gender 1
Female
End Size 1
9/16 in
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
H250H Series Hoses
Hex Size
0.68 in
Hose Dash Size
04
Inside Diameter
0.14 in
Material
Steel
Material Construction
Carbon Steel
Segment Code
C
Series
FJ3254 Series
Thread Sealant
Without Thread Sealant
Thread Size
9/16-18
Thread Type
UNF

Product Questions & Answers (2)

Question by: Freddie R on May 17, 2025, 3:07 PM
Running a -4 hose line through a pretty tight spot on a skid steer loader and need something that'll turn without eating up a bunch of room. That 45-degree angle on this fitting, is that gonna be enough to clear the frame?
Answer by: Customer Support on May 19, 2025, 8:57 AM
For tight routing situations, a 45-degree swivel elbow is often right in the sweet spot. It gives you a meaningful directional change without the sharper profile of a 90-degree, and because it's a swivel design, you've got some rotational freedom when lining things up during assembly. The -4 dash size hose end pairs with the female UN swivel on the other side at 0.5625-inch thread size, and that 0.4400-inch drop dimension keeps the overall footprint pretty compact. Whether it clears your specific frame geometry comes down to your exact clearances, but this configuration was built with space-constrained assemblies in mind.
Question by: Neil R on Mar 23, 2026, 4:33 PM
trying to tuck a hose in a tight spot. is this one the 45 degree swivel elbow style?
Answer by: Customer Support on Mar 25, 2026, 1:29 PM
For tight routing, it’s a 45 degree swivel elbow permanent crimp fitting, so the angle helps you turn the line without needing a big bend radius right at the hose end.
