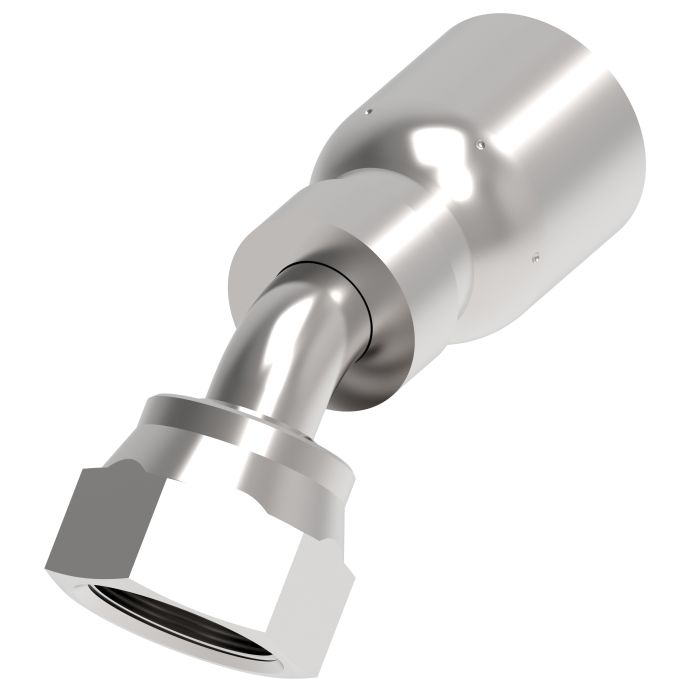

ORS Swivel 45° Elbow

Ask A Question

Description & Features

This Eaton Aeroquip ORS Swivel 45° Elbow is constructed from carbon steel and features Dura-Kote plating for enhanced corrosion resistance. This fitting assembly is part of the Aeroquip sub-brand, known for its innovative design that delivers reliable performance and maximum uptime.

Engineered as part of a complete system, this ORS Swivel 45° Elbow is designed to extend the life of hose assemblies. It features a female end gender, a -6 hose dash size, and a 0.6875 UN end size.

SKU: FJ3254-0606S

Supplier Part Number (MPN): FJ3254-0606S

Specifications

Brand
Weatherhead® by Danfoss
a Dimensions
1.99 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Crimp
Cut-Off Factor
1.2 in
Dimensions
2.76 in L x 0.81 in W x 1.63 in H
Drop Dimensions
0.44 in
End Gender 1
Female
End Size 1
11/16 in
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
H250H Series Hoses
Hex Size
0.826 in
Hose Dash Size
06
Inside Diameter
0.23 in
Material
Steel
Material Construction
Carbon Steel
Segment Code
A
Series
FJ3254 Series
Thread Sealant
Without Thread Sealant
Thread Size
11/16-16
Thread Type
UN

Product Questions & Answers (3)

Question by: Glen H on Nov 12, 2025, 7:01 PM
trying to swap out a fitting on a -6 hose, is this one the right dash size?
Answer by: Customer Support on Nov 14, 2025, 2:57 PM
For hose sizing, it matches a -6 hose dash size, so it’s a fit on that dash size side.
Question by: Connie R on May 10, 2025, 6:24 AM
What kind of corrosion protection does this fitting have? Working around a lot of moisture and I want to make sure it holds up.
Answer by: Customer Support on May 12, 2025, 6:27 AM
Carbon steel fittings can be a concern in wet or humid environments, but this one carries Dura-Kote plating specifically to push back against corrosion. It's an Eaton Aeroquip part, and that coating is one of the features they built into the design to give it longer service life compared to uncoated fittings.
Question by: Vince G on Dec 10, 2025, 4:56 PM
Will this fitting hold up to hydraulic fluid, or is it more for air lines and such?
Answer by: Customer Support on Dec 11, 2025, 7:10 PM
Dura-Kote plating gives this fitting enhanced corrosion resistance, so it's well-suited for hydraulic applications.
