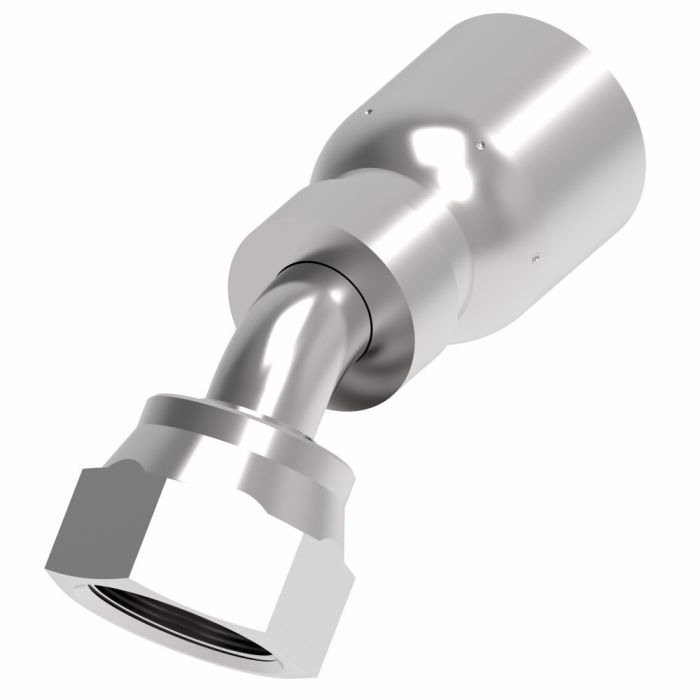

main product photo

Danfoss / Eaton Aeroquip FJ3254-0808S Ftng (perm), R5 Steel Compatible Hose ID 13/16 - 16 IN Female

Ask A Question

Description & Features

Enhance your hydraulic systems with the Danfoss / Eaton Aeroquip FJ3254-0808S Fitting, engineered for seamless integration with compatible R5 steel hoses. This high-quality fitting is designed with a 45-degree ORS swivel elbow, ensuring optimal fluid flow and minimizing potential leak points. Constructed from durable carbon steel, it features Dura-Kote plating for superior corrosion resistance, enhancing longevity even in demanding environments.

Crafted by Eaton Aeroquip, this fitting exemplifies innovative design aimed at maximizing performance and extending the life of hose assemblies. With a female end size of 0.8125 inches and a drop dimension of 0.5900 inches, it offers precise compatibility for various industrial applications. The product's engineering ensures maximum uptime, making it an essential component in hydraulic setups. The Eaton Aeroquip brand assures reliability and quality, synonymous with excellence in hydraulic solutions.

SKU: FJ3254-0808S

Supplier Part Number (MPN): FJ3254-0808S

Specifications

Brand
Weatherhead® by Danfoss
a Dimensions
2.43 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Crimp
Cut-Off Factor
1.54 in
Dimensions
3.23 in L x 0.94 in W x 1.92 in H
Drop Dimensions
0.59 in
End Gender 1
Female
End Size 1
13/16 in
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
H250H Series Hoses
Hex Size
0.94 in
Hose Dash Size
08
Inside Diameter
0.28 in
Material
Steel
Material Construction
Carbon Steel
Segment Code
A
Series
FJ3254 Series
Thread Sealant
Without Thread Sealant
Thread Size
13/16-16
Thread Type
UN

Similar Products

Model Number Connection Size 1 Connection Size 2 Hose Dash Size Price Action
Ftng (perm), R5

FJ3254-0404S

1/4 in

1/4 in

04

ORS Swivel 45° Elbow

FJ3254-0606S

3/8 in

3/8 in

06

Aeroquip Fitting (Perm) R5 ORS Swivel

FJ3254-1010S

5/8 in

5/8 in

10

FTNG (PERM), R5

FJ3254-1212S

3/4 in

3/4 in

12

Danfoss / Eaton Aeroquip FJ3254-1616S FTNG (PERM), R5 Steel Compatible Hose ID 1 7/16 - 12 IN Female

FJ3254-1616S

1 in

1 in

16

Product Questions & Answers (3)

Question by: Stan P on Apr 25, 2025, 8:20 PM
Got a worn-out swivel elbow on a R5 steel hose assembly and need to swap it out, will the FJ3254-0808S fit a 13/16 inch hose ID with a -8 dash size?
Answer by: Customer Support on Apr 27, 2025, 8:41 AM
For a -8 dash size R5 steel hose with a 13/16 inch ID, this fitting is the right match. The FJ3254-0808S is built specifically for that hose ID and dash size, so you won't be forcing a fit or hunting for adapters. The female end measures 0.8125 inches, which lines up with that 13/16 spec, and the 45-degree ORS swivel elbow orientation is already baked into the design. Swap it straight in and you should be good to go.
Question by: Diane P on May 2, 2025, 1:26 PM
got a -8 R5 steel hose here, is this FJ3254-0808S the right permanent fitting for it?
Answer by: Customer Support on May 4, 2025, 6:11 AM
It’s a permanent fitting assembly made for R5 steel hose in dash size -8, and it’s called out as compatible with a 13/16 inch hose ID. The hose end on it is a female 0.8125 inch size.
Question by: Diane B on Mar 28, 2026, 2:08 PM
What size hose does this fitting work with? Just wanna make sure I get the right one.
Answer by: Customer Support on Mar 30, 2026, 6:08 AM
This Eaton Aeroquip fitting is made for R5 steel hoses with a 13/16 to 16 inch inner diameter.
