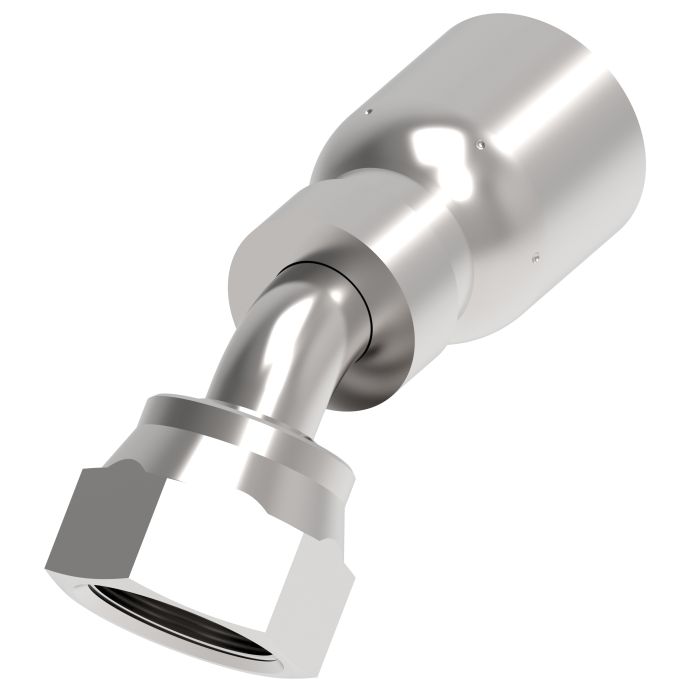

main product photo

Aeroquip Fitting (Perm) R5 ORS Swivel

Ask A Question

Description & Features

Carbon steel construction and Dura-Kote plating make this -10 dash size swivel fitting well suited for demanding hydraulic hose assembly applications where corrosion resistance and long service life are priorities. The Aeroquip Fitting (Perm) R5 ORS Swivel is part of Eaton Aeroquip's FJ3254 Series and features a female UN end type with a 1-inch end size, designed as a permanent crimp-style fitting for use with compatible R5 hose.

The swivel end type accommodates line, hose, or tube connections, offering assembly flexibility in tight or angled routing situations. At 1.13 inches wide and 0.34 lb, the fitting is compact without sacrificing the structural integrity expected in hydraulic circuits. The system-engineered design supports extended hose assembly life and consistent performance under working conditions.

SKU: FJ3254-1010S

Supplier Part Number (MPN): FJ3254-1010S

Specifications

Brand
Weatherhead® by Danfoss
a Dimensions
2.65 in
Compatible Hose ID
0.62 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Crimp
Cut-Off Factor
1.77 in
Dimensions
2.65 in L x 1.13 in W x 2.31 in H
Drop Dimensions
0.69 in
End Gender 1
Female
End Size 1
1 in
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
H250H Series Hoses
Hex Size
1.141 in
Hose Dash Size
10
Inside Diameter
0.41 in
Material
Steel
Material Construction
Carbon Steel
Segment Code
A
Series
FJ3254 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-14S
Thread Type
UNS

Product Questions & Answers (3)

Question by: Wade S on Feb 1, 2026, 10:19 AM
got a -10 R5 hose im crimpin up, is this the right kind of end for it or is it the wrong series
Answer by: Customer Support on Feb 2, 2026, 2:48 PM
For a -10 dash R5 hose, this is the matching style of fitting. It is a permanent crimp fitting in Eaton Aeroquip’s FJ3254 Series, built specifically for compatible R5 hose assemblies, with a female UN end and a 1 inch end size.
Question by: Dean G on Oct 19, 2025, 9:51 AM
How much wiggle room does this swivel fitting give me when I'm putting together a hose? Need to snake it around some stuff.
Answer by: Customer Support on Oct 20, 2025, 3:58 PM
The swivel end is designed to provide flexibility, especially helpful when you're working in tight spots or need to route hoses at odd angles.
Question by: Donna W on Feb 7, 2026, 9:58 AM
fitting says it's for R5 hose, does that mean it won't work with other hose types, or is that just the recommended match?
Answer by: Customer Support on Feb 8, 2026, 10:12 AM
R5 is the specified hose type for this fitting, and staying with that pairing is the right call. Permanent crimp-style fittings like this one are engineered to specific hose geometries, so swapping in a different hose type would compromise the crimp integrity and potentially the whole assembly. If your hose isn't R5, you'd want a fitting matched to what you're actually running.
