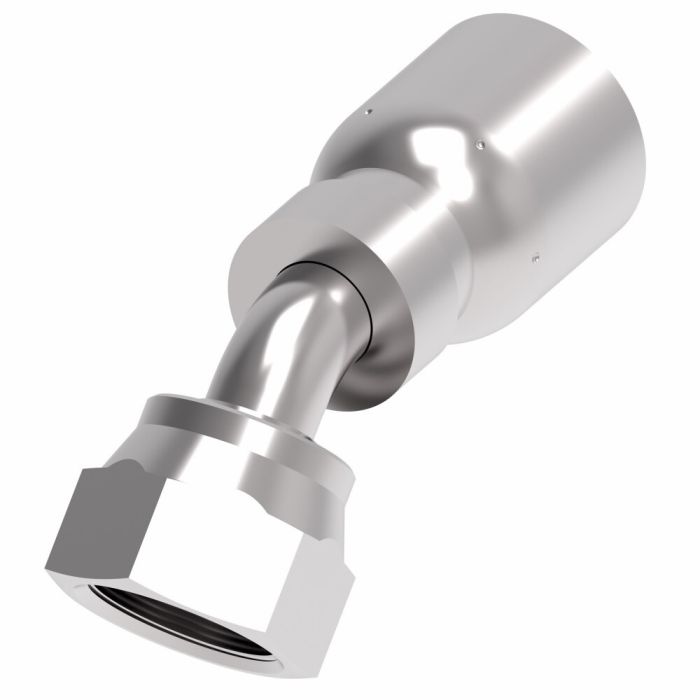

FTNG (PERM), R5

Ask A Question

Description & Features

The Eaton Aeroquip FTNG (PERM), R5 is a crimp hose fitting designed for hydraulic applications. This fitting features Dura-Kote plating, offering superior corrosion resistance and extending hose assembly life.

Engineered for performance and maximum uptime, this Aeroquip fitting has a -12 hose dash size, a female UN end, and a line/hose/tube end type 2. The 45-degree elbow ORS swivel design provides flexibility in connections. Constructed from carbon steel.

SKU: FJ3254-1212S

Supplier Part Number (MPN): FJ3254-1212S

Specifications

Brand
Weatherhead® by Danfoss
a Dimensions
2.88 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Crimp
Cut-Off Factor
1.99 in
Dimensions
4.13 in L x 1.38 in W x 2.68 in H
Drop Dimensions
0.83 in
End Gender 1
Female
End Size 1
12
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
H250H Series Hoses
Hex Size
1-3/8 in
Hose Dash Size
12
Inside Diameter
0.52 in
Material
Steel
Material Construction
Carbon Steel
Segment Code
A
Series
FJ3254 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-3/16-12
Thread Type
UN

Product Questions & Answers (2)

Question by: Danny H on Mar 28, 2026, 10:58 AM
got a -12 hose and need a 45 with a swivel, is this the right kind of end on it?
Answer by: Customer Support on Mar 30, 2026, 6:22 AM
For a -12 hose assembly where you want a 45 degree elbow with an ORS swivel, this fitting matches that setup. It is a permanent crimp style Aeroquip R5 fitting with a female UN end and a line hose tube end type 2.
Question by: Terry T on Dec 5, 2025, 7:12 PM
got a -12 hose line that needs a 45-degree swivel connection with a female UN end, this the right fitting for that setup?
Answer by: Customer Support on Dec 7, 2025, 6:05 PM
For a -12 hose dash size with a female UN end and a 45-degree elbow configuration, yes, that's exactly what this fitting covers. The ORS swivel design gives you rotational flexibility during installation, which makes routing a lot easier when you're working in tight spots. It's a permanent crimp-style fitting, so once it's on, it's meant to stay.
