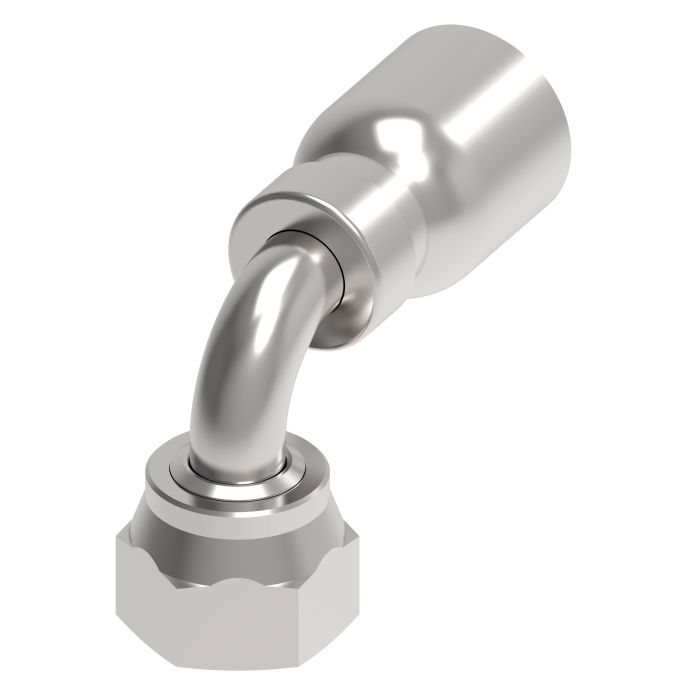

main product photo

ORS Swivel 90° Elbow (Short)

Ask A Question

Description & Features

Manufactured from carbon steel with Dura-Kote plating, this fitting delivers corrosion resistance suited to demanding hydraulic service conditions. The ORS Swivel 90° Elbow (Short) connects a female ORS end to a hose or tube in a compact 90-degree configuration, with a -6 dash size and a 0.6875-inch end diameter. The short-drop geometry, with a drop dimension of 0.91 inches, makes it a practical choice where routing space is limited or a low-profile elbow is required.

Part of the Eaton Aeroquip FJ3255 Series crimp hose fitting line, this fitting is engineered as a complete assembly designed to extend hose assembly service life and support maximum system uptime. The swivel feature on the ORS end simplifies installation and helps reduce hose twist during assembly.

SKU: FJ3255-0606S

Supplier Part Number (MPN): FJ3255-0606S

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
1.84 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Crimp
Cut-Off Factor
1.05 in
Dimensions
2.24 in L x 0.81 in W x 1.69 in H
Drop Dimensions
0.91 in
End Gender 1
Female
End Size 1
11/16 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
1503, FC234, FC300, FC350 and FC355 Series Hoses
Hex Size
0.826 in
Hose Dash Size
06
Inside Diameter
0.23 in
Material
Steel
Material Construction
Carbon Steel
Segment Code
A
Series
FJ3255 Series
Thread Sealant
Without Thread Sealant
Thread Size
11/16-16
Thread Type
UN

Product Questions & Answers (1)

Question by: Donna S on Sep 28, 2025, 8:56 PM
tight spot on a hose run, how much does this short 90 actually drop?
Answer by: Customer Support on Sep 30, 2025, 3:15 PM
For clearance, the drop dimension on this short 90 degree elbow is 0.91 inches, so it keeps the turn pretty low profile when you are trying to tuck a line in close.
