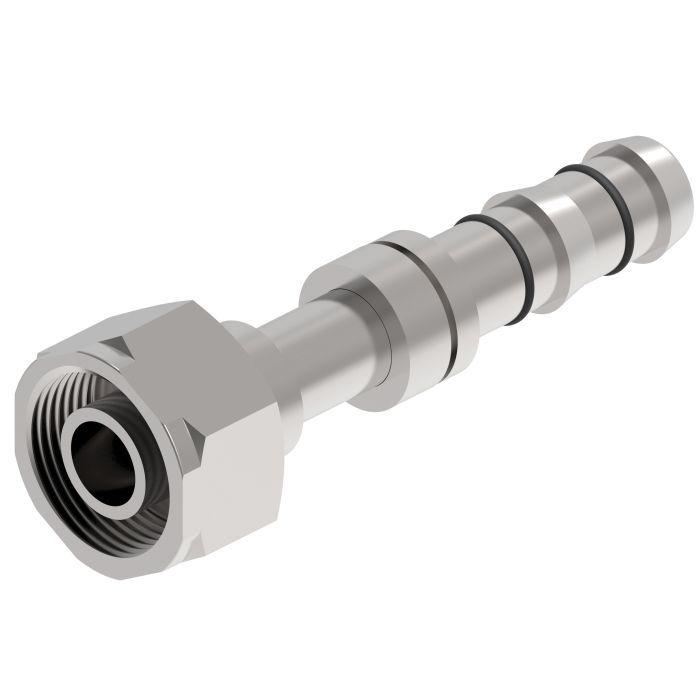

AEROQUIP CRIMP FITTING

Ask A Question

Description & Features

Built from carbon steel for durability in demanding industrial environments, this Eaton Aeroquip Crimp Fitting is a female ORS nipple assembly designed for -10 dash size hose connections. The ORS (O-Ring Face Seal) end configuration on one side mates with a line, hose, or tube connection on the other, making it well-suited for hydraulic assemblies where secure, leak-resistant joints are required.

Part of the Aeroquip crimp fitting range, this nipple assembly is engineered to fit a wide range of applications while helping reduce assembly times in production environments. The 1-inch end size and female configuration make it a practical choice for technicians working with standard hydraulic hose and fitting systems.

SKU: FJ3274-1010S

Supplier Part Number (MPN): FJ3274-1010S

Alternate Part Numbers: C1HE89, MI-08749262, MINO-00015X89595

Specifications

Brand
Danfoss
a Dimensions
3.69 in
Compatible Hose ID
0.63 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Crimp
Cut-Off Factor
2.14 in
Dimensions
3.69 in L
End Gender 1
Female
End Size 1
1 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
1.13 in
Hose Dash Size
10
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Segment Code
A
Series
FJ3274 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-14S
Thread Type
UNS

Product Questions & Answers (3)

Question by: Melvin H on May 30, 2025, 3:50 PM
got a -10 hose and need an ORS female end, is this the right crimp fitting or am i mixing things up
Answer by: Customer Support on May 31, 2025, 9:06 PM
For a -10 dash size hose connection, this nipple assembly matches that callout and it has a female ORS (O-Ring Face Seal) end with a 1 inch end size. The other end is meant to mate to a line, hose, or tube connection, so it fits the common ORS-to-line style hookup used in hydraulic assemblies.
Question by: Duane R on Dec 3, 2025, 1:43 PM
So, this here is for hooking up some hoses, right? What kinda hoses will fit it?
Answer by: Customer Support on Dec 5, 2025, 10:36 AM
This Aeroquip crimp fitting is designed for use with hoses that have a -10 dash size. It's a female ORS nipple assembly, so it'll mate with a line, hose, or tube connection.
Question by: Shane M on Feb 14, 2026, 12:57 PM
What's the end type on this fitting, is it actually an ORS configuration, and what size hose does it work with?
Answer by: Customer Support on Feb 16, 2026, 6:37 AM
The female end is ORS, which stands for O-Ring Face Seal, and the opposite end connects to a line, hose, or tube. It's built for -10 dash size hose and carries a 1-inch end size. Carbon steel construction throughout, so it holds up well in standard hydraulic environments where a secure, leak-resistant joint matters.
