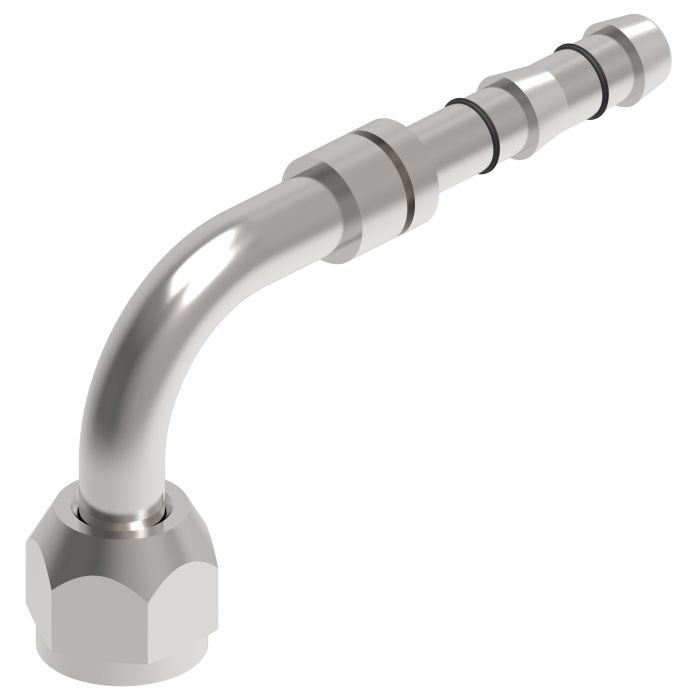

Aeroquip E-Z CLIP Fitting

Ask A Question

Description & Features

Designed for A/C refrigeration and industrial hose assembly applications, the Aeroquip E-Z Clip Fitting is a female O-ring, long pilot, 90-degree elbow configuration built to handle a broad range of connection demands. Constructed from carbon steel, it offers reliable durability in demanding environments where consistent, leak-free performance is required.

This fitting features a -16 hose dash size and accommodates a UNF end type on one side with a line/hose/tube connection on the other. The E-Z Clip system is engineered to reduce assembly time, making it well suited for production environments where throughput matters. With a package weight of 1.45 lb and a drop dimension of 3.13, it fits within standard assembly tooling parameters for this fitting class.

SKU: FJ3288-06-1216S

Supplier Part Number (MPN): FJ3288-06-1216S

Specifications

Brand
Danfoss
a Dimensions
4.84 in
Compatible Hose ID
1 in
Connection Size 1
1 in
Connection Size 2
3/4 in
Connection Type
Female Tube O-ring Long Pilot, Hose
Connection Type 1
Hose
Connection Type 2
Female Tube O-ring Long Pilot
Construction Style
Reusable
Cut-Off Factor
3.16 in
Dimensions
5.47 in L x 1.25 in W x 3.73 in H
Drop Dimensions
2.56 in
End Gender 1
Female
End Size 1
12
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
1.26 in
Hose Dash Size
16
Inside Diameter
0.59 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
A
Series
FJ3288 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-1/16-14
Thread Type
UN

Product Questions & Answers (1)

Question by: Brent H on Jan 2, 2026, 1:32 PM
Is this fitting meant to be used with a specific type of hose?
Answer by: Customer Support on Jan 4, 2026, 11:37 AM
The Aeroquip E-Z Clip Fitting is designed for A/C refrigeration and industrial hose assembly applications, so it's pretty versatile.
