Aeroquip POLYON Brass FJIC SWAGE Fitting

Description & Features

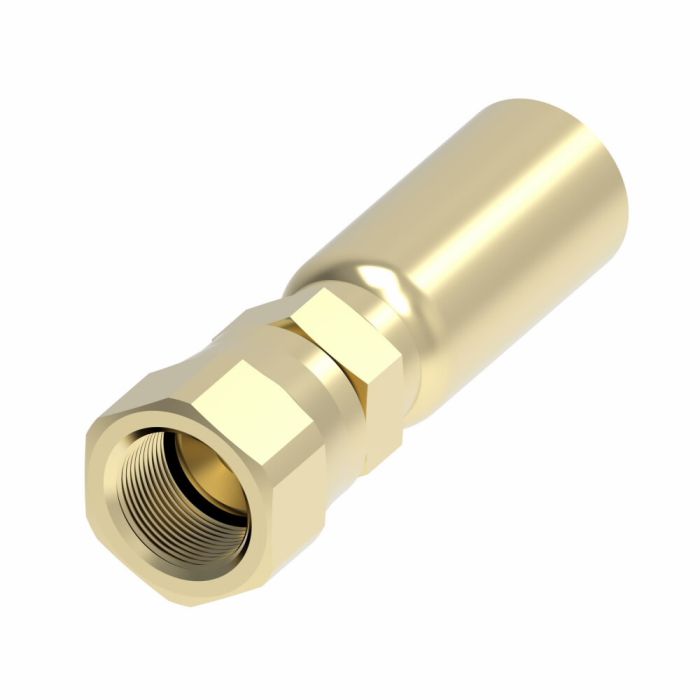

Constructed from brass with Dura-Kote plating, this female JIC swage fitting is designed for reliable performance in hydraulic hose assembly applications. The Aeroquip Polyon Brass FJIC Swage Fitting features a 3/4-inch UNF female end with an SAE 37-degree swivel configuration, paired with a -8 hose dash size and a 0.88-inch hex on the hose end.

Part of Eaton Aeroquip's system-engineered Polyon series, the fitting is built to extend hose assembly service life and minimize downtime in demanding hydraulic circuits. Dura-Kote plating provides corrosion resistance suited to harsh industrial environments. The fitting is classified as a swage-style assembly, compatible with corresponding Aeroquip hose and crimping systems.

SKU: FJ3337-0808B

Supplier Part Number (MPN): FJ3337-0808B

Alternate Part Numbers: C1FF11

Specifications

Brand
Danfoss
a Dimensions
3.11 in
Angle Shape
Straight
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Female SAE 37 deg JIC Swivel
Connection Type 2
Hose
Construction Style
Crimp
Cut-Off Factor
1.46 in
Dimensions
3.11 in L
End Connection Torque
33 to 40 lb-ft
Finish
Dura-Kote™
Fitting Type
Crimp Fitting
For Use With
FC370 Series Hoses
Hex Size
0.938 x 0.88 in
Hose Dash Size
08
Inside Diameter
0.38 in
Material
Brass
Material Construction
Brass
Series
FJ3337 Series
Thread Sealant
Without Thread Sealant
Thread Size
3/4-16
Tube Outside Diameter
1/2 in

Similar Products

Model Number Connection Size 1 Connection Size 2 Hose Dash Size Price Action
Brass Crimp Polyon Swage Fitting, 7/16-20 Female JIC 37 deg Flare Swivel, -04 Hose, Straight

FJ3337-0404B Brass Polyon JIC Swage Fitting

1/4 in

1/4 in

04

Product Questions & Answers (3)

Question by: Roger M on Apr 19, 2025, 1:33 PM
what hose dash size does this fitting take? got a -8 line i'm trying to terminate and want to make sure before i order
Answer by: Customer Support on Apr 21, 2025, 11:47 AM
Built for a -8 hose dash size, so it'll match up with what you've got. The hose end runs a 0.88-inch hex, and the female JIC end is 3/4-inch UNF with a 37-degree swivel seat. Just make sure you're pairing it with compatible Aeroquip hose and the corresponding crimping equipment for a proper swage assembly.
Question by: Denise S on Sep 10, 2025, 1:38 PM
Is this fitting made to hold up in nasty conditions, like around chemicals and stuff?
Answer by: Customer Support on Sep 12, 2025, 8:44 AM
Dura-Kote plating gives this fitting good corrosion resistance, which helps it last longer when it's exposed to harsh industrial environments.
Question by: Tammy G on May 28, 2025, 2:16 PM
trying to match up an old fitting, is this one a 3/4 UNF female JIC swivel on one end and for -8 hose on the other?
Answer by: Customer Support on May 30, 2025, 11:08 AM
It is a female JIC swivel with an SAE 37 degree seat and a 3/4 inch UNF thread on the female end, and it is built as a swage fitting for -8 hose.
