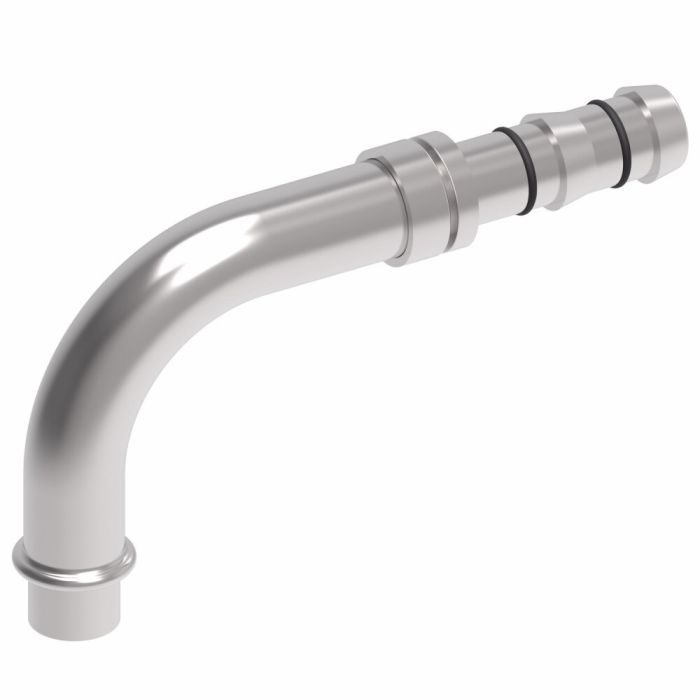

main product photo

90° Pilot Connection (Long Pilot)

Ask A Question

Description & Features

Designed for use within the Eaton Aeroquip E-Z Clip system, this carbon steel nipple assembly provides a 90° pilot connection with a long pilot configuration, suited to A/C refrigeration and related hose assembly applications. The male barb end (End Size 1: 0.625 in.) connects to -10 dash size hose, while the opposing end accommodates line, hose, or tube connections, offering versatile integration across a range of circuit configurations.

The 90° Pilot Connection (Long Pilot) is built to reduce assembly time without sacrificing reliability. A drop dimension of 1.89 in. and a package weight of 1.24 lb reflect a compact, practical form factor. Carbon steel construction provides solid durability for industrial refrigerant and fluid handling service.

SKU: FJ3496-01-1010S

Supplier Part Number (MPN): FJ3496-01-1010S

Alternate Part Numbers: MI-08749270, MINO-00015X89597

Specifications

Brand
Danfoss
a Dimensions
4.22 in
Compatible Hose ID
0.63 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Barbed, Hose
Connection Type 1
Hose
Connection Type 2
Barbed
Construction Style
Crimp
Cut-Off Factor
2.67 in
Drop Dimensions
2 in
End Gender 1
Male
End Size 1
5/8 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
GH134 Series Hoses
Hose Dash Size
10
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
A
Series
FJ3496 Series
Thread Sealant
Without Thread Sealant

Product Questions & Answers (1)

Question by: Dustin G on Mar 17, 2026, 11:05 AM
trying to swap out a fitting on a -10 A/C hose, is this one the right size on the barb end
Answer by: Customer Support on Mar 18, 2026, 5:46 PM
For the barb side, it matches a -10 dash size hose and the End Size 1 is 0.625 in with a male barb. That combination is what you want when you are pairing it to a -10 hose in the Eaton Aeroquip E-Z Clip system.
