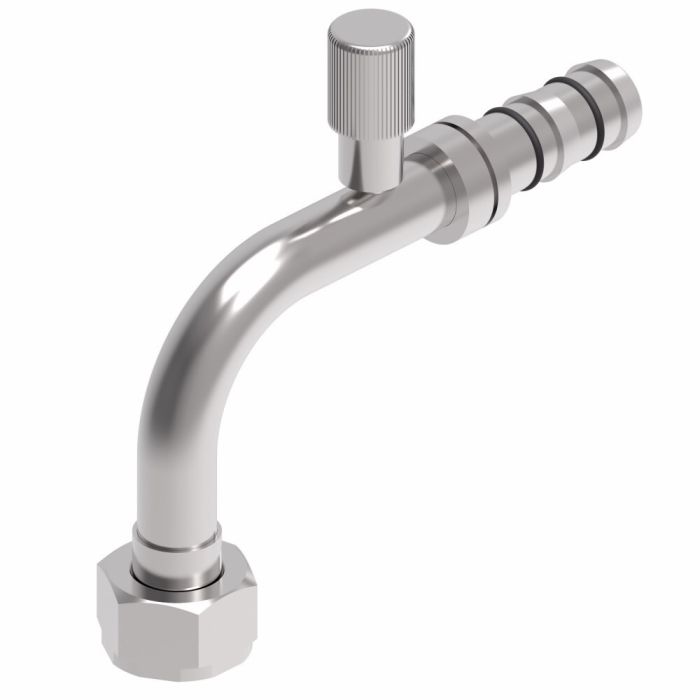

AEROQUIP FITTING

Ask A Question

Description & Features

Designed for A/C refrigeration service in mobile and industrial equipment, this carbon steel fitting assembly from Aeroquip connects a -10 hose dash size line to a 1-inch ORS end with a 90-degree elbow orientation. Part of the Eaton E-Z Clip system, it features a female Rotalok end with an R134a high side port, making it well-suited for refrigerant circuit connections where space or routing constraints require an angled fitting.

The Aeroquip Fitting is built to reduce assembly time in production environments. Carbon steel construction provides reliable durability across a wide range of A/C and refrigeration applications. A drop dimension of 2.58 inches is available in the accompanying technical drawing for layout and installation planning.

SKU: FJ3511-1010S

Supplier Part Number (MPN): FJ3511-1010S

Specifications

Brand
Danfoss
a Dimensions
4.8 in
Compatible Hose ID
0.62 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Female Rotalok, Hose
Connection Type 1
Hose
Connection Type 2
Female Rotalok
Construction Style
Reusable
Cut-Off Factor
3-1/4 in
Dimensions
5 in L x 1.13 in W x 3.33 in H
Drop Dimensions
2.56 in
End Gender 1
Female
End Size 1
1 in
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
1.141 in
Hose Dash Size
10
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
A
Series
FJ3511 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-14S
Thread Type
UNS

Product Questions & Answers (1)

Question by: Brenda R on Sep 14, 2025, 7:28 AM
Reckon this fitting will hold up okay in a refrigeration unit that runs pretty much non-stop?
Answer by: Customer Support on Sep 16, 2025, 6:15 AM
Carbon steel construction ensures that this Aeroquip fitting can handle continuous-duty A/C and refrigeration applications reliably.
