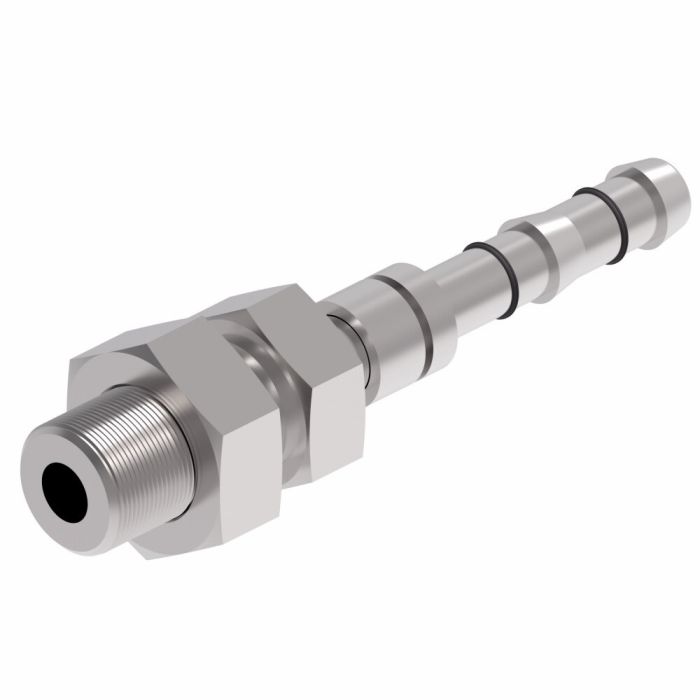

main product photo

Straight Bulkhead

Ask A Question

Description & Features

The Eaton Aeroquip Straight Bulkhead fitting is a robust component crafted from durable carbon steel, ensuring long-lasting performance in demanding industrial environments. Designed to optimize efficiency, this fitting is part of the Eaton E-Z Clip System, which is known for reducing assembly times and boosting production. With a male UNF end type and a hose dash size of -6, it is suitable for a broad range of hose, line, and tube applications.

Engineered for reliability, the Straight Bulkhead fitting features a hex size of 0.81 inches and an end size of 0.625 inches, making it adaptable to various hydraulic configurations. This component is ideal for applications requiring secure and efficient fluid transfer, thanks to its compatibility with Eaton's fluid systems. The product's technical details and compatibility information can be accessed through Eaton's comprehensive documentation for easy integration into your projects.

SKU: FJ3513-0606S

Supplier Part Number (MPN): FJ3513-0606S

Specifications

Brand
Danfoss
a Dimensions
3.69 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Hose, Male Tube O-ring Long Pilot
Connection Type 1
Hose
Connection Type 2
Male Tube O-ring Long Pilot
Construction Style
Reusable
Cut-Off Factor
2.16 in
Dimensions
3.69 in L x 0.94 in W x 1.08 in H
End Gender 1
Male
End Size 1
5/8 in
Finish
Zinc-Plated
Fitting Type
Hose Fitting
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
0.944 x 0.826 in
Hose Dash Size
06
Inside Diameter
0.22 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
C
Series
FJ3513 Series
Thread Sealant
Without Thread Sealant
Thread Size
5/8-18
Thread Type
UNF

Product Questions & Answers (3)

Question by: Lynn G on Jan 27, 2026, 9:39 AM
So this bulkhead fitting, it's just carbon steel, right? I need to make sure it can handle what I'm throwin' at it.
Answer by: Customer Support on Jan 28, 2026, 12:02 PM
That's right, this Eaton Aeroquip straight bulkhead fitting is made from carbon steel, which gives it good durability for industrial use. Eaton also publishes fluid compatibility documentation to help you further confirm suitability.
Question by: Rod G on Jun 24, 2025, 7:52 AM
got a -6 hose and need a straight bulkhead fitting. is this one set up for that?
Answer by: Customer Support on Jun 25, 2025, 10:38 AM
For a -6 hose dash size, this fitting matches that hose size and it is a straight bulkhead style in the Eaton Aeroquip E-Z Clip system. It also uses a male UNF end with a 0.625 inch end size, so it fits setups calling for that UNF connection.
Question by: Scott G on Dec 7, 2025, 4:14 PM
what system does this fitting belong to, and does it help speed up assembly any?
Answer by: Customer Support on Dec 9, 2025, 9:22 AM
Part of Eaton's E-Z Clip System, which was built specifically to cut down on assembly time and keep production moving. It's a well-regarded system in industrial hydraulic work for that reason, and this straight bulkhead fitting carries those same advantages.
