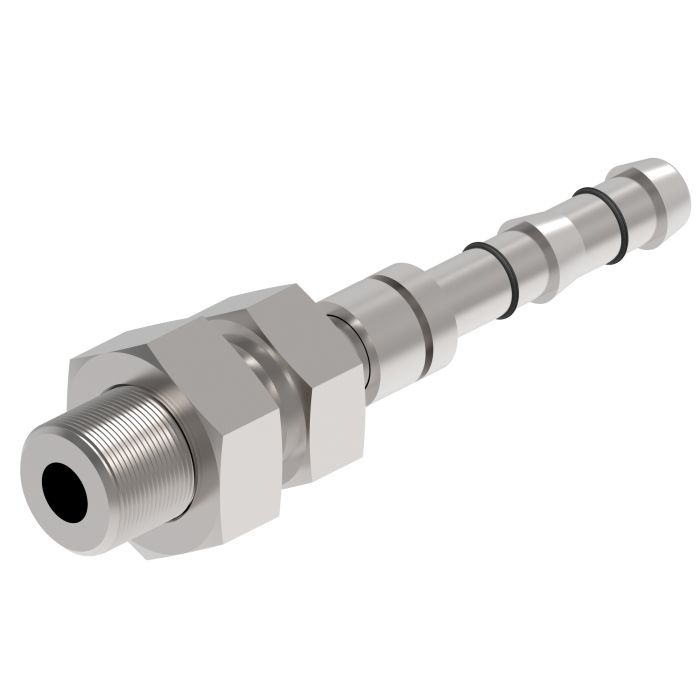

main product photo

Aeroquip Fitting EZ-CLIP Straight Bulkhead

Ask A Question

Description & Features

Designed for A/C refrigeration and climate control line connections, the Aeroquip Fitting EZ-Clip Straight Bulkhead is a carbon steel nipple assembly built for reliable performance across a wide range of industrial applications. The straight bulkhead configuration supports panel or wall-mounted installations where hose or tube lines pass through a fixed surface.

This fitting features a -8 hose dash size with a 0.75-inch UNF male thread on one end and a line/hose/tube connection on the other, with a 0.88-inch hex on the second end. The EZ-Clip design is engineered to reduce assembly time and support consistent production throughput without sacrificing connection integrity.

Manufactured by Eaton Aeroquip, this fitting is part of the established E-Z Clip system, making it a practical choice for technicians working within that assembly standard. Carbon steel construction provides durable, dependable service in demanding environments.

SKU: FJ3513-0808S

Supplier Part Number (MPN): FJ3513-0808S

Specifications

Brand
Danfoss
a Dimensions
3.93 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Hose, Male Tube O-ring Long Pilot
Connection Type 1
Hose
Connection Type 2
Male Tube O-ring Long Pilot
Construction Style
Reusable
Cut-Off Factor
2.389 in
Dimensions
3.93 in L x 1 in W x 1 in H
End Gender 1
Male
End Size 1
3/4 in
Finish
Zinc-Plated
Fitting Type
Hose Fitting
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
0.984 x 0.866 in
Hose Dash Size
08
Inside Diameter
0.31 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
C
Series
FJ3513 Series
Thread Sealant
Without Thread Sealant
Thread Size
3/4-16
Thread Type
UNF

Product Questions & Answers (3)

Question by: Floyd M on Feb 27, 2026, 2:18 PM
What kind of applications is this fitting good for?
Answer by: Customer Support on Mar 1, 2026, 12:16 PM
This fitting is fit for a wide range of applications, so it's pretty versatile. It's designed for A/C refrigeration and climate control line connections.
Question by: Gary O on Feb 22, 2026, 8:47 AM
What kind of thread does this fitting have, and which end does it go on?
Answer by: Customer Support on Feb 23, 2026, 2:16 PM
The male thread end runs 0.75-inch UNF, and that's your connection point for the panel or wall side of the installation. The opposite end handles the line, hose, or tube connection and carries a 0.88-inch hex for wrench access. Both ends are part of the same nipple assembly, so everything comes as one unit ready to drop into your EZ-Clip setup.
Question by: Earl C on Jul 4, 2025, 2:37 PM
got a bulkhead pass-through spot on my panel, is this one actually set up for that kind of install?
Answer by: Customer Support on Jul 5, 2025, 2:38 PM
For panel or wall-mounted pass-through setups, the straight bulkhead configuration is the whole point of this nipple assembly. It lets your hose or tube line run through a fixed surface while keeping the connection secure on each side.
