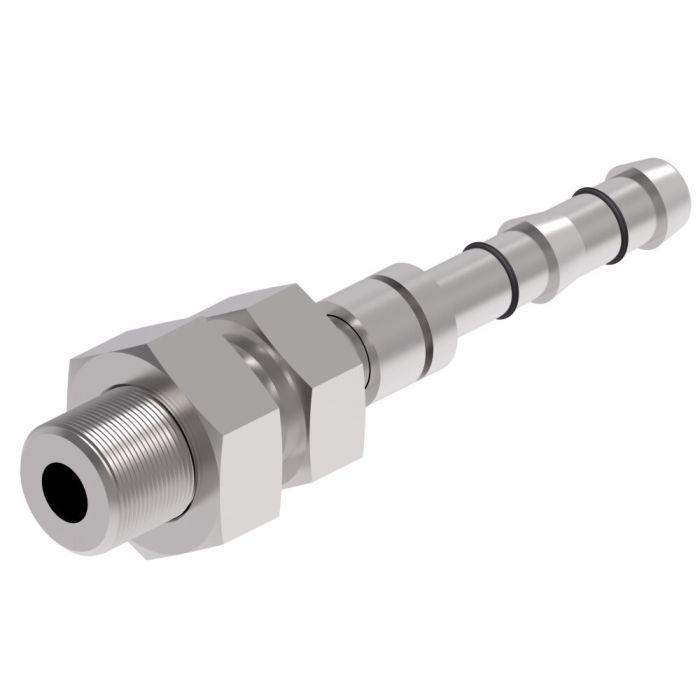

main product photo

Straight Bulkhead

Ask A Question

Description & Features

Designed for use within the Eaton Aeroquip E-Z Clip system, this carbon steel Straight Bulkhead nipple assembly is built for A/C refrigeration circuit connections in demanding industrial environments. The fitting features a 7/8-14 UNF male thread on one end, sized at 0.875 inches, and accommodates a -10 dash size hose on the line end, with a 1.13-inch hex for secure wrench engagement.

Carbon steel construction provides reliable durability across a wide range of refrigerant-compatible applications. The E-Z Clip design is intended to reduce assembly time and support higher production throughput without sacrificing connection integrity. As a bulkhead-style nipple, it is suited for panel or wall pass-through installations where a fixed, inline connection point is required.

SKU: FJ3513-1010S

Supplier Part Number (MPN): FJ3513-1010S

Specifications

Brand
Danfoss
a Dimensions
4.49 in
Compatible Hose ID
0.62 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Hose, Male Tube O-ring Long Pilot
Connection Type 1
Hose
Connection Type 2
Male Tube O-ring Long Pilot
Construction Style
Reusable
Cut-Off Factor
2.94 in
Dimensions
4.49 in L x 1.13 in W x 1.3 in H
End Gender 1
Male
End Size 1
7/8 in
Finish
Zinc-Plated
Fitting Type
Hose Fitting
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
1.141 in
Hose Dash Size
10
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
C
Series
FJ3513 Series
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14
Thread Type
UNF

Product Questions & Answers (3)

Question by: Jimmy C on Nov 18, 2025, 7:42 PM
got a -10 hose on an A/C refrigeration circuit, is this bulkhead the right match or am i off a size
Answer by: Customer Support on Nov 20, 2025, 7:46 AM
For the hose end, it matches a -10 dash size. On the threaded end, it is a 7/8-14 UNF male thread with a 0.875 inch end size, so it is set up for that hose size and that specific UNF male connection.
Question by: Peggy R on Apr 2, 2026, 7:36 AM
What size wrench do I need for this bulkhead fitting?
Answer by: Customer Support on Apr 3, 2026, 6:30 PM
The hex size on this fitting is 1.13 inches, so that's the wrench size you'll want to use.
Question by: Stan E on Apr 14, 2025, 6:21 AM
Got a panel mount A/C fitting that needs replacing on a refrigeration line, and I'm trying to figure out if this one'll work. It's a -10 hose end and 7/8-14 UNF thread on the other side. That match up with what this fitting does?
Answer by: Customer Support on Apr 15, 2025, 10:49 AM
that lines right up. The fitting runs a 7/8-14 UNF male thread on one end and picks up a -10 dash size hose on the line end, so if that's what your setup calls for, you're in the right place. It's a bulkhead-style nipple, which means it's built specifically for pass-through mounting in a panel or wall. Carbon steel construction, and it's part of the Eaton Aeroquip E-Z Clip system, so the hose end needs to be compatible with that clip-style assembly.
