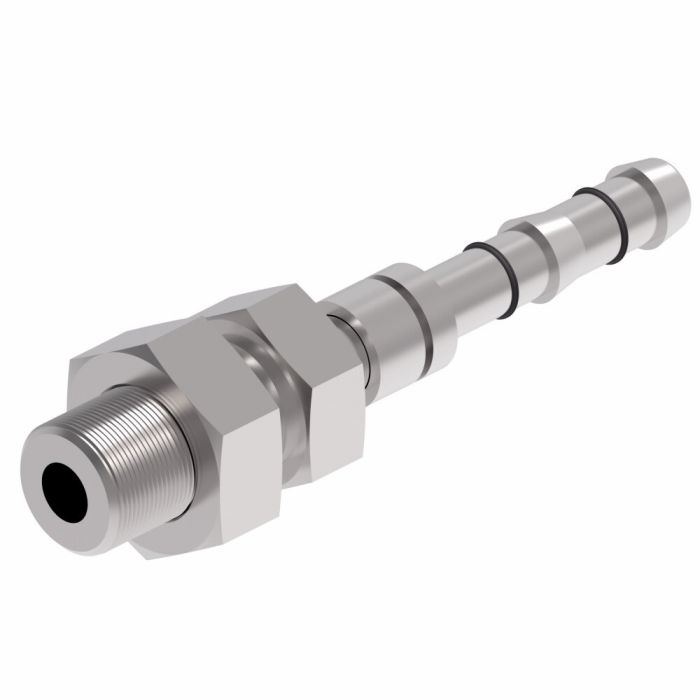

main product photo

Straight Bulkhead

Ask A Question

Description & Features

The Eaton Aeroquip Straight Bulkhead is a reliable choice for various industrial applications requiring secure fluid transfer. Its durable carbon steel construction ensures longevity and dependable performance in demanding environments. Designed with a UNF male end and a hose, line, or tube connection, this bulkhead fitting simplifies installation, significantly reducing assembly times and enhancing production efficiency.

With a hose dash size of -16 and a hex size of 1.38 inches, this nipple assembly is engineered to accommodate a broad range of fluid types, as indicated in the provided fluid compatibility documentation. Trust the Eaton Aeroquip brand for consistent quality and a robust solution in fluid management systems.

SKU: FJ3513-1216S

Supplier Part Number (MPN): FJ3513-1216S

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
4.92 in
Compatible Hose ID
1 in
Connection Size 1
3/4 in
Connection Size 2
1 in
Connection Type
Hose, Male Tube O-ring Long Pilot
Connection Type 1
Hose
Connection Type 2
Male Tube O-ring Long Pilot
Construction Style
Crimp
Cut-Off Factor
3.24 in
End Gender 1
Male
End Size 1
12
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
1-3/8 in
Hose Dash Size
16
Inside Diameter
5/8 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
C
Series
FJ3513 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-1/16-14
Thread Type
UN

Similar Products

Model Number Connection Size 1 Connection Size 2 Hose Dash Size Price Action
Straight Bulkhead

FJ3513-0606S

3/8 in

3/8 in

06

Aeroquip Fitting EZ-CLIP Straight Bulkhead

FJ3513-0808S

1/2 in

1/2 in

08

Straight Bulkhead

FJ3513-1010S

5/8 in

5/8 in

10

Straight Bulkhead

FJ3513-1212S

3/4 in

3/4 in

12

Product Questions & Answers (4)

Question by: Scott H on May 28, 2025, 7:10 AM
got a -16 hose setup, is this straight bulkhead the right dash size for that or am i off a size?
Answer by: Customer Support on May 30, 2025, 6:28 AM
With a hose dash size of -16, this fitting matches a -16 setup on the hose side, and it’s a straight bulkhead style.
Question by: Glen M on Jun 26, 2025, 11:47 AM
what's the hose dash size on this fitting, and does it hook up to a -16 line?
Answer by: Customer Support on Jun 28, 2025, 6:06 AM
the hose dash size is -16, so it'll mate up with a -16 hose or line without any adapter needed. The end connecting to the line or hose side is sized accordingly, and the other end runs a UNF male thread for the bulkhead connection.
Question by: Vince H on Jun 9, 2025, 8:34 PM
What kind of stuff is this bulkhead fitting made from?
Answer by: Customer Support on Jun 11, 2025, 12:52 PM
This straight bulkhead is constructed from carbon steel, so it's plenty durable for hydraulic applications.
Question by: Floyd M on Jun 17, 2025, 2:05 PM
what material is this bulkhead fitting made from, and is it gonna hold up in a rougher environment?
Answer by: Customer Support on Jun 19, 2025, 6:32 AM
Carbon steel construction on this one, so it's built to take some punishment in demanding conditions. It's part of the Eaton Aeroquip E-Z Clip system for A/C and refrigeration work, and carbon steel gives you solid durability for those kinds of duty cycles. If you're running it somewhere with heavy moisture exposure or corrosive elements, that's worth factoring in, but for general industrial and HVAC-type applications it's a dependable choice.
