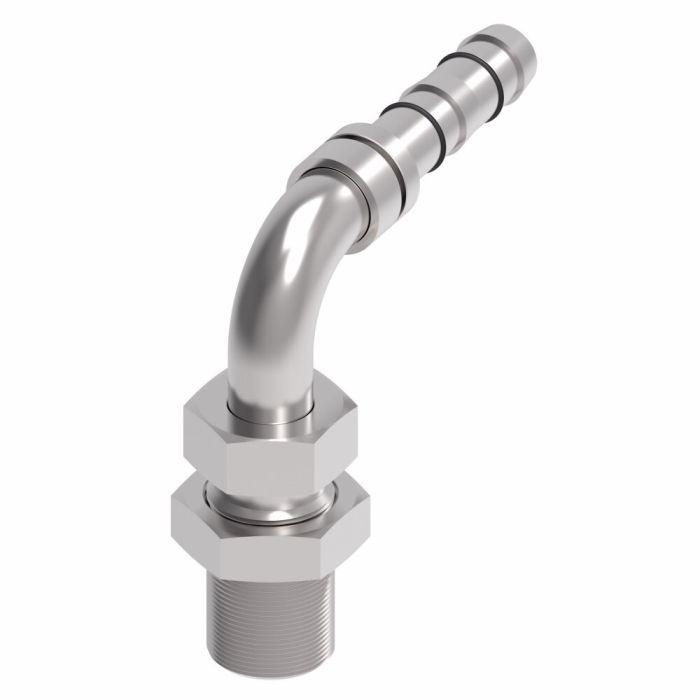

main product photo

90° Male Bulkhead

Ask A Question

Description & Features

This Eaton Aeroquip 90° Male Bulkhead fitting assembly is suitable for a wide range of applications requiring a durable and dependable connection. This fitting is designed to cut assembly times and boost production.

Constructed from carbon steel, this fitting features a 0.625 UNF male end and a -6 hose dash size. The fitting's drop dimension measures 2.1500, and it uses a 0.81 hex size.

SKU: FJ3514-0606S

Supplier Part Number (MPN): FJ3514-0606S

Specifications

Brand
Danfoss
a Dimensions
2-1/2 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Hose, Male O-ring Long Pilot
Connection Type 1
Hose
Connection Type 2
Male O-ring Long Pilot
Construction Style
Crimp
Cut-Off Factor
0.98 in
Drop Dimensions
2 in
End Gender 1
Male
End Size 1
5/8 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
GH134 Series Hoses
Hex Size
0.81 x 0.94 in
Hose Dash Size
06
Inside Diameter
0.22 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
C
Series
FJ3514 Series
Thread Sealant
Without Thread Sealant
Thread Size
5/8-18
Thread Type
UNF

Product Questions & Answers (1)

Question by: Todd R on May 18, 2025, 8:49 AM
trying to swap out a bulkhead elbow i busted, is this one the -6 hose end with a 0.625 UNF male thread?
Answer by: Customer Support on May 19, 2025, 9:10 PM
It matches a -6 hose dash size and a 0.625 UNF male end. It is a 90 degree male bulkhead fitting assembly, so it’s meant for that elbow-through-a-panel style connection.
