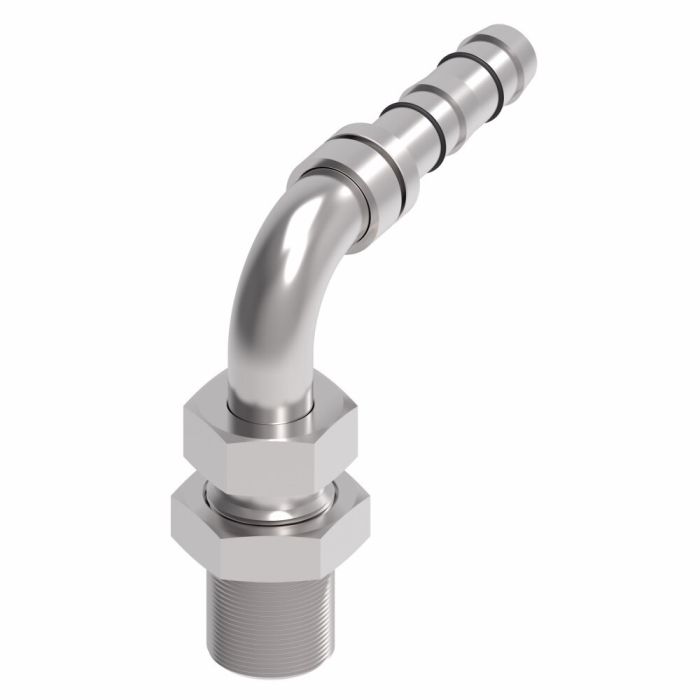

main product photo

90° Male Bulkhead

Ask A Question

Description & Features

This 90° Male Bulkhead fitting by Danfoss Power Solutions is engineered for durability and reliability in diverse industrial applications. Constructed from robust carbon steel, this fitting offers dependable performance, reducing assembly times and enhancing production efficiency. Its design ensures compatibility with various hoses or tubes, making it a versatile choice for complex systems.

Featuring a 0.75 UNF male end and accommodating a -8 hose dash size, this bulkhead fitting is ideal for seamless integration into existing setups. The hex size of 0.88 ensures secure and straightforward installation. With a drop dimension of 2.6100, it is crafted to meet precise specifications required by industry professionals.

SKU: FJ3514-0808S

Supplier Part Number (MPN): FJ3514-0808S

Specifications

Brand
Danfoss
a Dimensions
2.74 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Hose, Male O-ring Long Pilot
Connection Type 1
Hose
Connection Type 2
Male O-ring Long Pilot
Construction Style
Crimp
Cut-Off Factor
1.2 in
Drop Dimensions
3 in
End Gender 1
Male
End Size 1
3/4 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
GH134 Series Hoses
Hex Size
7/8 x 1 in
Hose Dash Size
08
Inside Diameter
0.32 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
A
Series
FJ3514 Series
Thread Sealant
Without Thread Sealant
Thread Size
3/4-16
Thread Type
UNF

Product Questions & Answers (1)

Question by: Billy P on Nov 3, 2025, 2:31 PM
got a -8 hose setup and need a 90 bulkhead, is this one gonna match up with a 0.75 UNF male end?
Answer by: Customer Support on Nov 5, 2025, 6:41 AM
It’s set up with a 0.75 UNF male end and it’s sized for a -8 hose dash, so it matches those two key connection details.
