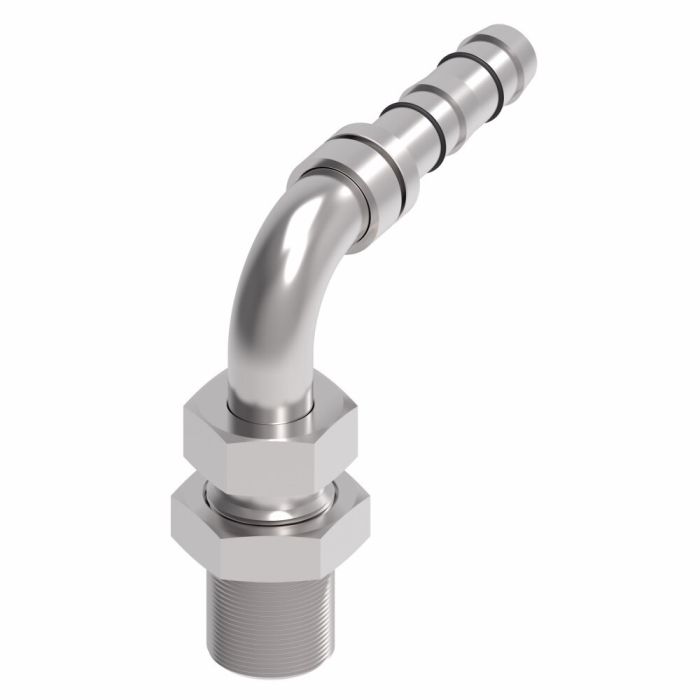

main product photo

90° Male Bulkhead

Ask A Question

Description & Features

Constructed from durable carbon steel, the Eaton Aeroquip 90° Male Bulkhead fitting is designed to deliver reliable performance in demanding industrial environments. This fitting assembly reduces assembly times and boosts production efficiency, making it a versatile choice for various applications. With a male UNF thread size of 0.875 inches and a hose dash size of -10, it ensures compatibility with a wide range of hydraulic systems.

This fitting features a 3.2600-inch drop dimension and a hex size of 1.13 inches, providing the robustness and reliability needed for high-pressure systems. The Eaton Aeroquip brand is synonymous with quality, offering dependable solutions for complex fluid transfer needs. Utilize the included document links for in-depth fluid compatibility and catalog information to further enhance your system design and maintenance process.

SKU: FJ3514-1010S

Supplier Part Number (MPN): FJ3514-1010S

Specifications

Brand
Danfoss
a Dimensions
3.08 in
Compatible Hose ID
0.63 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Hose, Male O-ring Long Pilot
Connection Type 1
Hose
Connection Type 2
Male O-ring Long Pilot
Construction Style
Crimp
Cut-Off Factor
1.53 in
Drop Dimensions
3 in
End Gender 1
Male
End Size 1
7/8 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
GH134 Series Hoses
Hex Size
1.13 in
Hose Dash Size
10
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
C
Series
FJ3514 Series
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14
Thread Type
UNF

Product Questions & Answers (2)

Question by: Floyd T on Aug 7, 2025, 4:50 PM
What kind of steel is this fitting made from?
Answer by: Customer Support on Aug 9, 2025, 7:13 AM
This Aeroquip fitting is constructed from carbon steel, so it's durable enough for demanding industrial jobs.
Question by: Travis P on Mar 31, 2026, 10:47 AM
what's the hose dash size on this fitting and will it work with a -10 hose end?
Answer by: Customer Support on Apr 2, 2026, 6:35 AM
-10 is exactly what this fitting is rated for. The hose dash size is -10, so if your hose end matches that, you're good to go. The male UNF thread side comes in at 0.875 inches, so just make sure your mating port matches up on that end too.
