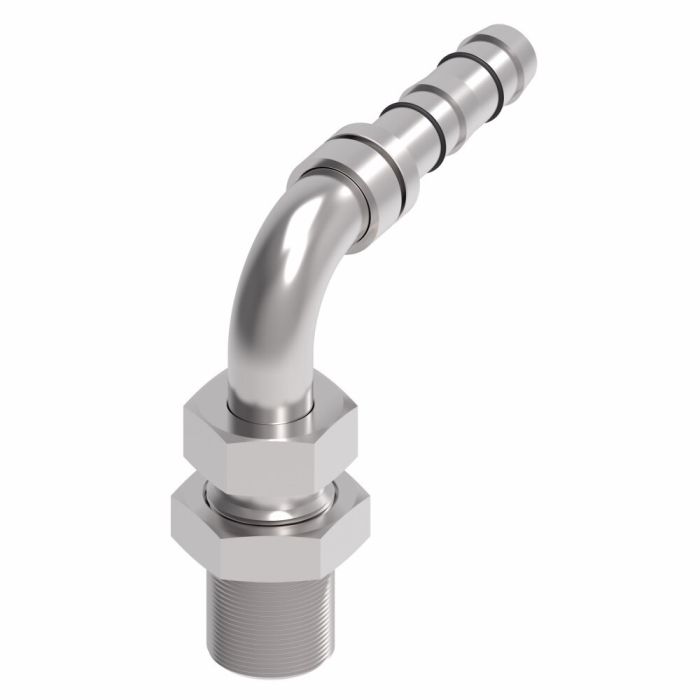

main product photo

90° Male Bulkhead

Ask A Question

Description & Features

This Eaton Aeroquip fitting is a 90° Male Bulkhead designed for a wide range of applications. It is durable and dependable, helping to cut assembly times and boost production.

The fitting features a male end with a 0.875-inch UNF connection for line, hose, or tube. Constructed from carbon steel, this fitting offers reliability in demanding environments. The 90-degree elbow configuration allows for versatile connection options.

SKU: FJ3514-1012S

Supplier Part Number (MPN): FJ3514-1012S

Specifications

Brand
Danfoss
a Dimensions
3.11 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
5/8 in
Connection Type
Hose, Male O-ring Long Pilot
Connection Type 1
Hose
Connection Type 2
Male O-ring Long Pilot
Construction Style
Crimp
Cut-Off Factor
1.53 in
Drop Dimensions
3 in
End Gender 1
Male
End Size 1
7/8 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
GH134 Series Hoses
Hex Size
1.13 in
Hose Dash Size
12
Inside Diameter
0.475 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
A
Series
FJ3514 Series
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14
Thread Type
UNF

Product Questions & Answers (1)

Question by: Tommy J on May 4, 2025, 7:59 AM
trying to match up an old elbow bulkhead fitting, is this one a 90 degree male with a 0.875 UNF thread?
Answer by: Customer Support on May 5, 2025, 8:48 AM
Built as a 90 degree male bulkhead elbow, it uses a 0.875 inch UNF male connection and is meant to tie into line, hose, or tube setups.
