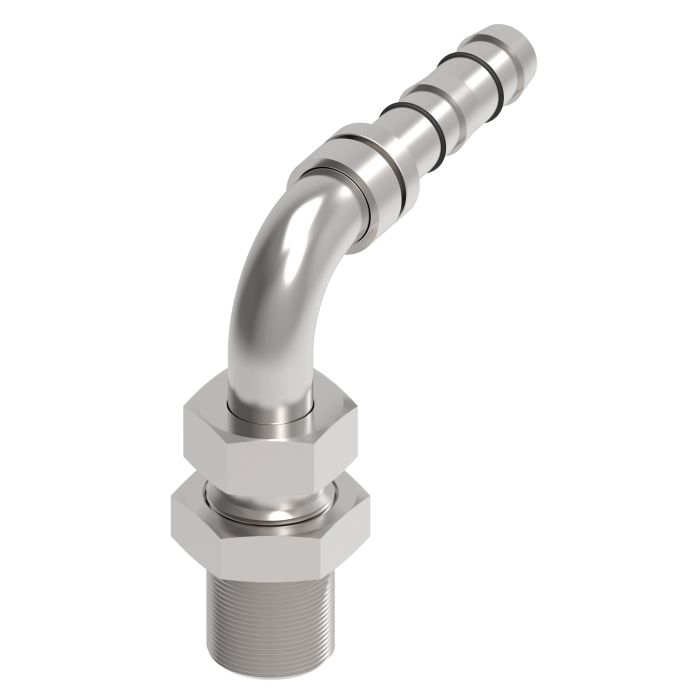

90° Male Bulkhead

Ask A Question

Description & Features

The Eaton Aeroquip 90° Male Bulkhead fitting is engineered for durability and efficiency in industrial applications. Constructed from robust carbon steel, this fitting ensures long-lasting performance, even in demanding environments. Designed with a UNF male end and compatible with a range of hoses, tubes, and lines, it optimizes installation and maintenance tasks. The fitting's 1.38-inch hex size and -12 hose dash size provide a secure connection, facilitating easy integration into existing systems.

With its precision design, the 90° Male Bulkhead fitting reduces assembly times and enhances production processes. Whether used in hydraulic or refrigeration systems, it delivers reliable performance that meets industry standards. The fitting's compact design, with a drop dimension of 3.78 inches, allows for versatile installation options without compromising on space or efficiency.

SKU: FJ3514-1212S

Supplier Part Number (MPN): FJ3514-1212S

Specifications

Brand
Danfoss
a Dimensions
3.69 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Hose, Male O-ring Long Pilot
Connection Type 1
Hose
Connection Type 2
Male O-ring Long Pilot
Construction Style
Reusable
Cut-Off Factor
2.11 in
Dimensions
4.38 in L x 1.38 in W x 4.28 in H
Drop Dimensions
3.78 in
End Gender 1
Male
End Size 1
12
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
1-3/8 in
Hose Dash Size
12
Inside Diameter
0.475 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
C
Series
FJ3514 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-1/16-14
Thread Type
UN

Product Questions & Answers (2)

Question by: Janet H on Sep 2, 2025, 1:57 PM
What kind of stuff is this fitting made out of?
Answer by: Customer Support on Sep 4, 2025, 1:48 PM
Carbon steel makes up this fitting, ensuring it's durable enough for demanding industrial jobs.
Question by: Connie H on Apr 17, 2025, 6:48 PM
What's this fitting made out of, and is it gonna hold up in a hydraulic setup running pretty regular?
Answer by: Customer Support on Apr 19, 2025, 1:06 PM
Carbon steel construction on this one, so it's built to handle the kind of stress hydraulic systems put on fittings day in and day out. Eaton Aeroquip made it for industrial use, and that material choice isn't accidental. Carbon steel gives you solid durability without a lot of fuss, which is why it shows up in demanding hydraulic and refrigeration applications alike.
