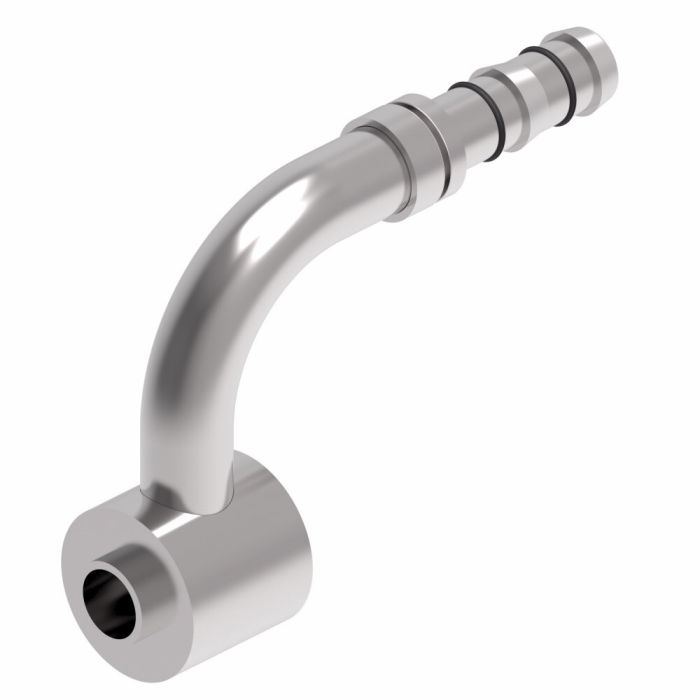

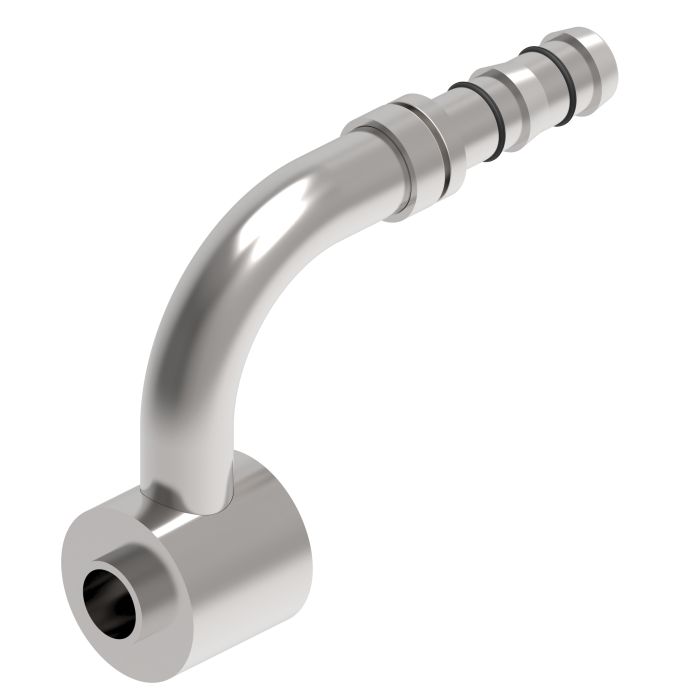

main product photo

AEROQUIP

Ask A Question

Description & Features

Crafted for durability and dependability, the Aeroquip E-Z Clip System A/C Refrigeration 90° Elbow is an essential component for diverse industrial applications. This fitting assembly features a GM block style and is constructed from robust carbon steel, ensuring long-lasting performance under demanding conditions. Designed to streamline assembly processes, it significantly cuts down on installation times, boosting production efficiency.

With an SAE end type and a 0.875-inch end size, this elbow fitting is versatile for various line, hose, or tube connections. Its compact design, with a drop dimension of 2.3800 inches, makes it ideal for tight spaces. The Aeroquip brand is synonymous with quality, making this fitting a reliable choice for your industrial needs. For detailed technical documents, refer to the provided catalog and fluid compatibility links.

SKU: FJ3568-1012S

Supplier Part Number (MPN): FJ3568-1012S

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
3.86 in
Compatible Hose ID
3/4 in
Connection Size 1
5/8 in
Connection Size 2
3/4 in
Connection Type
Hose
Connection Type 1
Hose
Connection Type 2
Hose
Construction Style
Reusable
Cut-Off Factor
2.28 in
Dimensions
4.5 in L x 1.29 in W x 3.28 in H
Drop Dimensions
2.38 in
End Size 1
7/8 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hose Dash Size
12
Inside Diameter
0.475 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
C
Series
FJ3568 Series
Thread Sealant
Without Thread Sealant

Product Questions & Answers (1)

Question by: Cody M on Mar 9, 2026, 9:06 AM
Is this elbow fitting okay to use with different kinds of fluids, or does it matter?
Answer by: Customer Support on Mar 10, 2026, 11:09 AM
Fluid compatibility is definitely something to consider. Eaton provides a fluid compatibility document link that you can check to make sure this fitting works with what you're using it for.
