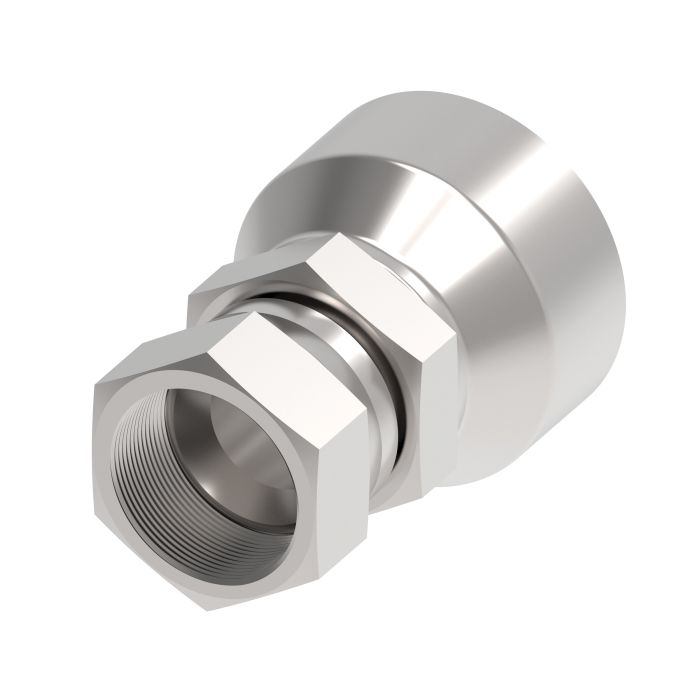

FTGS REFRIG SAE 37 CS

Ask A Question

Description & Features

Designed for A/C refrigeration lines, this carbon steel fitting assembly from Eaton Aeroquip connects via an SAE 37° swivel on one end to a -16 hose dash size line, hose, or tube on the other. Part of the Aeroquip E-Z Clip system, the FTGS Refrig SAE 37 CS is built to reduce assembly time while maintaining reliable, consistent connections across a wide range of refrigeration applications.

Carbon steel construction provides durable, dependable performance in demanding service environments. The female SAE 37° swivel end allows for easy make-up and repositioning during installation, while the 1.25-inch hex size on the second end accommodates standard tooling. The E-Z Clip system design is engineered to streamline production assembly without sacrificing connection integrity.

SKU: FJ3901-1616S

Supplier Part Number (MPN): FJ3901-1616S

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.81 in
Compatible Hose ID
1 in
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female 37 deg Swivel
Construction Style
Crimp
Cut-Off Factor
1.79 in
End Connection Torque
103 to 118 ft-lb
End Gender 1
Female
End Size 1
16
Finish
Zinc-Plated
Fitting Type
Hose Fitting
For Use With
A/C Refrigeration Hoses
Hex Size
1-1/2 x 1-1/4 in
Hose Dash Size
16
Inside Diameter
0.61 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Series
FJ3901 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-5/16-12
Thread Type
UN

Product Questions & Answers (1)

Question by: Tony M on Oct 19, 2025, 7:19 PM
fitting's got a female SAE 37 swivel on one end -- does that mean I can reposition it some during install without having to wrench the whole line around?
Answer by: Customer Support on Oct 20, 2025, 9:55 PM
Yeah, that swivel end is exactly what makes these easier to work with on tight or awkward runs. You can rotate it to get the angle right before you lock everything down, which saves a good bit of grief when you're working in a cramped space. The 1.25-inch hex on the other end means you're using standard tooling, nothing special required.
