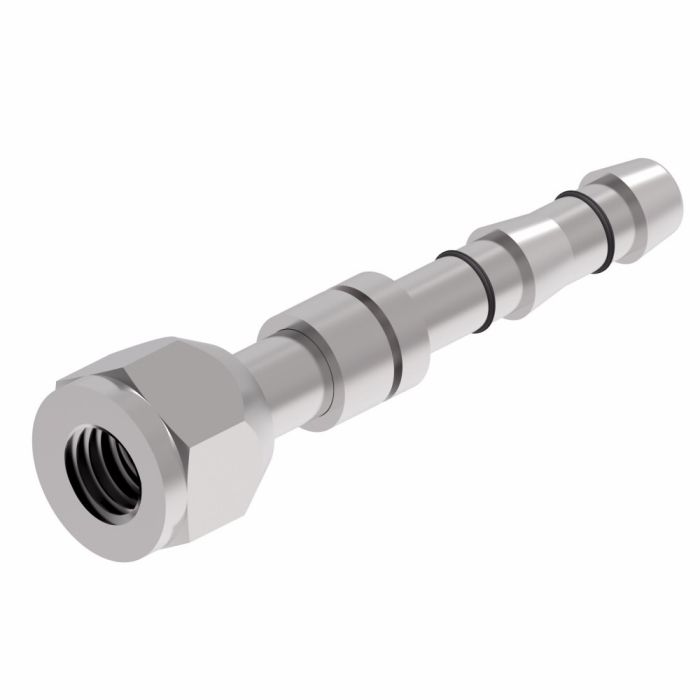

Ftng Assy (perm)E-Z Clip

Ask A Question

Description & Features

Designed for automotive and mobile A/C refrigeration systems, this carbon steel nipple assembly connects a female O-ring short (ORS) end to a hose or tube line, with an end size of 0.875 inches and a -16 hose dash size. The Ftng Assy (perm)E-Z Clip is part of the Eaton Aeroquip E-Z Clip permanent fitting system, engineered to reduce assembly time and support consistent production throughput in demanding environments.

Certified to SAE J2064 Type E, Class 1, this fitting meets established standards for mobile air conditioning hose assemblies. The E-Z Clip design simplifies installation without sacrificing reliability, making it a practical choice for high-volume assembly applications. Carbon steel construction provides durability across a wide range of operating conditions.

SKU: FJ5984-1016S

Supplier Part Number (MPN): FJ5984-1016S

Specifications

Brand
Danfoss
a Dimensions
3.76 in
Compatible Hose ID
1 in
Connection Size 1
1 in
Connection Size 2
5/8 in
Connection Type
Female Tube, Hose
Connection Type 1
Hose
Connection Type 2
Female Tube O-ring Short Pilot
Construction Style
Reusable
Cut-Off Factor
2.083 in
Dimensions
3.76 in L x 1.06 in W x 1.22 in H
End Gender 1
Female
End Size 1
7/8 in
Finish
Zinc-Plated
Fitting Type
Hose Fitting
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
1.06 in
Hose Dash Size
16
Inside Diameter
0.475 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
C
Series
FJ5984 Series
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14
Thread Type
UNF

Product Questions & Answers (3)

Question by: Travis B on Nov 12, 2025, 5:03 PM
got a -16 A/C hose and need an ORS female end, is this the right fitting size?
Answer by: Customer Support on Nov 14, 2025, 7:09 AM
For mobile A/C refrigeration hose assemblies using the Eaton Aeroquip E-Z Clip permanent system, this nipple assembly matches a -16 hose dash size and has a female ORS end with a 0.875 inch end size, with the other side meant to connect to a hose or tube line.
Question by: Rex S on Jun 27, 2025, 5:51 PM
If I'm hooking this up in a mobile A/C system, what standard does it meet?
Answer by: Customer Support on Jun 29, 2025, 7:21 AM
This fitting assembly is certified to SAE J2064 Type E, Class 1, meeting standards for mobile air conditioning hose assemblies.
Question by: Janice J on Oct 16, 2025, 11:09 AM
Does this fitting work with -16 hose on mobile A/C lines, or is it sized for something else?
Answer by: Customer Support on Oct 18, 2025, 6:11 AM
Built for exactly that setup. The E-Z Clip assembly uses a -16 hose dash size and connects to a female O-ring short end, so it fits right into mobile air conditioning hose assemblies. The 0.875 inch end size and ORS end type are what define the connection point on the equipment side, while the other end accepts the hose or tube line directly.
