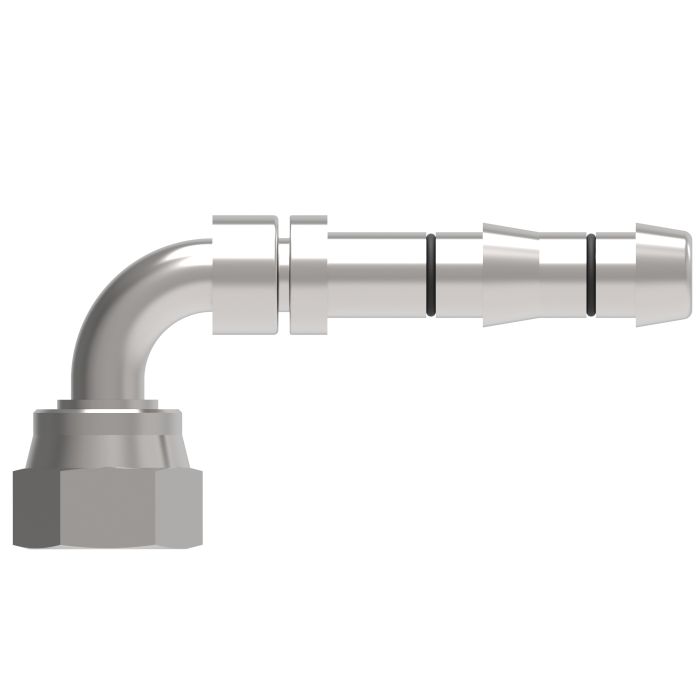

DANFOSS / EATON AEROQUIP E-Z CLIP?SYSTEM -12 FEMA

Ask A Question

Description & Features

The Danfoss / Eaton Aeroquip E-Z Clip System -12 Female crafted by Danfoss Power Solutions is engineered to streamline a variety of tasks. This female ORS fitting accommodates a wide range of applications and meets stringent SAE J2064 Type E Class 1 certifications ensuring it holds up under demanding conditions.

Constructed from durable carbon steel its robustness is uncompromised enabling a long-lasting performance even in temperatures as low as -40 degrees. The fitting is specifically designed to cut assembly times significantly boosting production efficiency.

With a drop dimension of 1.9000 and a hex size of 1.25 it guarantees a precise fit. The hose dash size of -12 ensures compatibility with multiple hose types. Note that this product does not include any auxiliary components such as valves blades or cases.

Supplier Part Number: FJ5994-03-1212S

MPN: EAR99

Specifications

Brand
Danfoss
a Dimensions
3.36 in
Compatible Hose ID
3/4 in
Compatible Tube OD
3/4 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Reusable
Cut-Off Factor
1.78 in
Drop Dimensions
2 in
End Connection Torque
63 to 75 lb-ft
End Gender 1
Female
End Size 1
14
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
1-3/8 x 1-1/4 in
Hose Dash Size
12
Inside Diameter
0.475 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Operating Temperature
-40
Segment Code
C
Series
FJ5994 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-3/16-12
Thread Type
UN
Tube Outside Diameter 1
3/4 in

Product Questions & Answers (3)

Question by: Troy H on Aug 30, 2025, 2:08 PM
What kinda temperature range can this fitting handle? I work in a place that gets mighty cold in the winter.
Answer by: Customer Support on Sep 1, 2025, 6:19 AM
It's rated to handle temperatures as low as -40 degrees, so it should hold up even in pretty harsh winter conditions.
Question by: Ralph W on Apr 3, 2026, 2:38 PM
got a line running -12 hose and need a female ORS fitting on the end, this the right one for that?
Answer by: Customer Support on Apr 5, 2026, 6:23 AM
Female ORS on a -12 hose dash size is exactly what this fitting covers. It's a nipple assembly with an ORS end type on one side and a line/hose/tube connection on the other, so it's built for that kind of termination. Carbon steel construction means it'll hold up in most standard hydraulic line environments without any fuss.
Question by: Kirk B on Jan 14, 2026, 11:47 AM
trying to match up hoses in the shop, is this one for a -12 hose and a female ORS end?
Answer by: Customer Support on Jan 15, 2026, 6:28 PM
Built as a female ORS fitting for a -12 hose dash size, it’s meant to mate to an ORS style connection on one end and a line, hose, or tube connection on the other.
