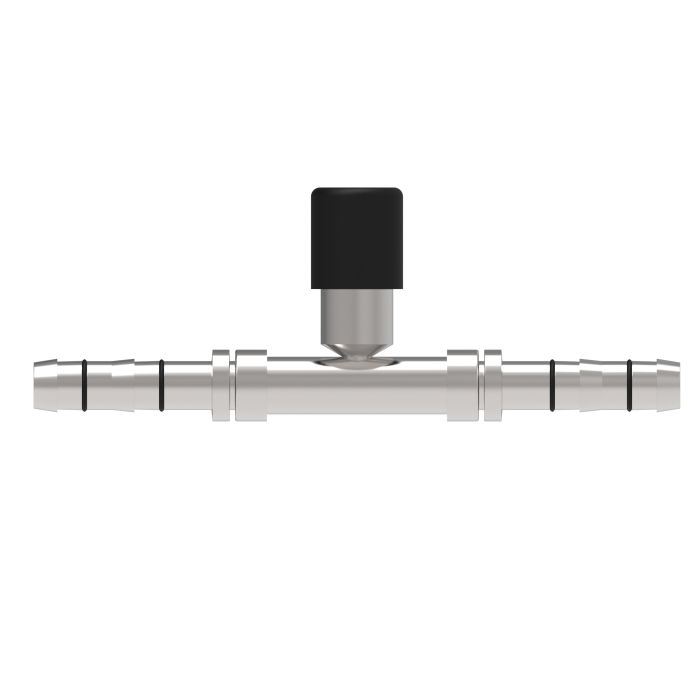

Aeroquip EZ CLIP Splicer-HIGH SIDE CHG PT FTG

Ask A Question

Description & Features

Designed for A/C refrigeration service in automotive and light commercial applications, the Aeroquip Ez Clip Splicer-High Side Chg Pt Ftg is a carbon steel nipple assembly built for use with R134a refrigerant on the high-pressure side of the system. It features a barb end configuration in a -6 hose dash size, connecting to line, hose, or tube on the secondary end, making it well suited for splice points in mobile and stationary A/C circuits.

Certified to SAE J2064 Type E, Class 1, this fitting meets recognized industry standards for refrigerant hose assemblies. The Ez Clip design is intended to reduce assembly time without sacrificing connection reliability, and the carbon steel construction supports dependable performance across a wide range of service conditions. Supplied individually (each).

SKU: FJ5995-0606S

Supplier Part Number (MPN): FJ5995-0606S

Alternate Part Numbers: C1EY96, MI-08749290, MINO-00015X89604

Specifications

Brand
Danfoss
a Dimensions
5.41 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Hose
Connection Type 1
Hose
Connection Type 2
Hose
Construction Style
Reusable
Cut-Off Factor
2.36 in
Dimensions
5.41 in L x 0.55 in W x 0.55 in H
End Gender 1
Male
End Size 1
06
Finish
Zinc-Plated
Fitting Type
Splicer
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hose Dash Size
06
Inside Diameter
0.22 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
A
Series
FJ5995 Series
Thread Sealant
Without Thread Sealant

Product Questions & Answers (1)

Question by: Stan B on Aug 12, 2025, 9:53 PM
got a high side R134a line that needs a splice, is this the right kind of fitting for that?
Answer by: Customer Support on Aug 14, 2025, 6:50 AM
For high pressure R134a A/C service, this splicer is meant to be used as a splice point in automotive and light commercial refrigeration circuits. It is a carbon steel nipple assembly with a -6 barb end and a secondary end made to connect to line, hose, or tube.
