AEROQUIP ST ORS P.O.R.

Description & Features

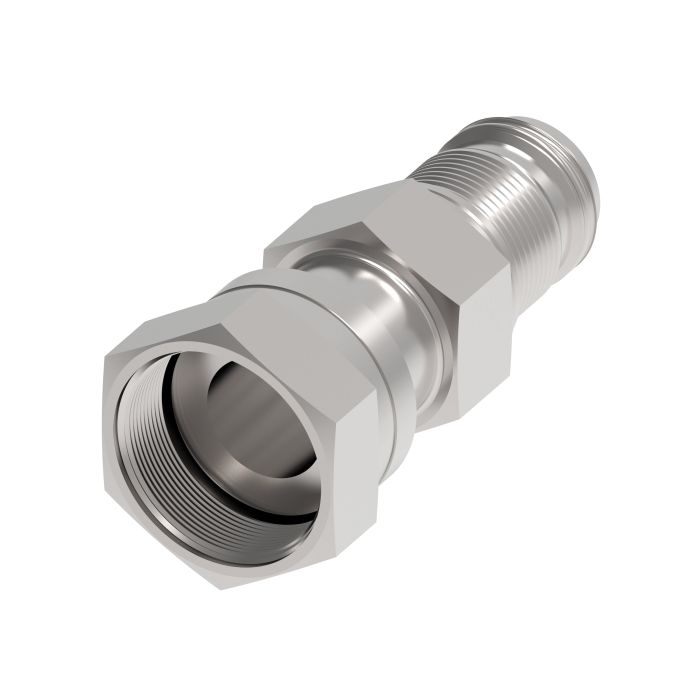

A straight-configuration nipple assembly designed for O-Ring Straight (ORS) face seal connections, the Aeroquip ST ORS P.O.R. provides a reliable female end connection for line, hose, and tube applications in hydraulic systems. Constructed from carbon steel, it offers solid mechanical integrity suited to demanding industrial fluid power environments.

This fitting type uses an ORS end configuration, which relies on a flat face and O-ring seal to minimize leakage at the connection point, a common requirement in medium- to high-pressure hydraulic circuits. The female end gender and nipple assembly format make it compatible with standard ORS male counterparts across a range of hydraulic assemblies.

SKU: FJ6482-1616S

Supplier Part Number (MPN): FJ6482-1616S

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 3.28 in	Angle Shape Straight	Compatible Hose ID 1 in	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Female ORFS Swivel, Hose	Connection Type 1 Female ORFS Swivel	Connection Type 2 Hose	Construction Style Crimp	Cut-Off Factor 2.06 in	Dimensions 3.28 in L	End Connection Torque 92 to 100 lb-ft	Finish Dura-Kote™	Fitting Type Crimp Fitting	For Use With FC363 Series Hoses	Hex Size 1-5/8	Hose Dash Size 16	Inside Diameter 0.81 in	Material Steel	Material Construction Carbon Steel	Maximum Operating Pressure 6000 psi	Operating Temperature -65 to 300 deg F	Series FJ6482 Series	Thread Sealant Without Thread Sealant	Thread Size 1-7/16-12

Product Questions & Answers (1)

Question by: Bonnie R on Dec 30, 2025, 9:40 AM

Will this here nipple assembly work with standard ORS male fittings?

Answer by: Customer Support on Dec 31, 2025, 3:01 PM

Yes, this nipple assembly is designed to be compatible with standard ORS male counterparts commonly found in hydraulic setups.
