AEROQUIP CRIMP FTGS. - CODE FC

Description & Features

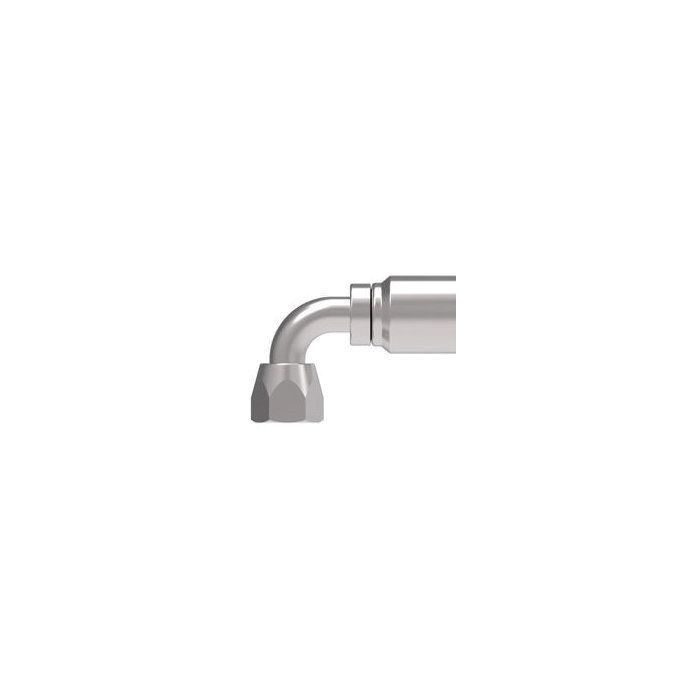

This Aeroquip crimp fitting features a female SAE end with a 0.4375 inch size and a -4 hose dash size. Constructed from carbon steel, this nipple assembly ensures durability and reliable performance in hydraulic applications.

This Aeroquip crimp fitting is suitable for connecting to a line, hose or tube. Refer to the attached fluid compatibility document for proper application.

SKU: FJ6952-0404S

Supplier Part Number (MPN): FJ6952-0404S

Specifications

Brand Danfoss	a Dimensions 1.62 in	Angle Shape 90 deg	Compatible Hose ID 1/4 in	Connection Size 1 1/4 in	Connection Size 2 1/4 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Female 37 deg/45 deg Universal Swivel	Connection Type 2 Hose	Construction Style Crimp	Cut-Off Factor 0.72 in	Dimensions 1.62 in L x 0.56 in W x 0.68 in H	Drop Dimensions 0.68 in	Finish Zinc-Plated	Fitting Type 90 deg Elbow	For Use With FC650 Series Hoses	Hex Size 0.55 in	Hose Dash Size 04	Inside Diameter 0.1 in	Material Steel	Material Construction Carbon Steel	Series FJ6952 Series	Thread Sealant Without Thread Sealant	Thread Size 7/16-20	Tube Outside Diameter 1/4 in

Product Questions & Answers (1)

Question by: Ralph R on Dec 28, 2025, 5:00 PM

So, this fitting... it'll work connecting a hose to, say, a tube, right? Just wanna double check before I order.

Answer by: Customer Support on Dec 30, 2025, 6:11 AM

Yes, this Aeroquip crimp fitting is suitable for connecting to either a line, a hose, or a tube, as it's an end type 2.
