Aeroquip Reusable FTGS - Code

Description & Features

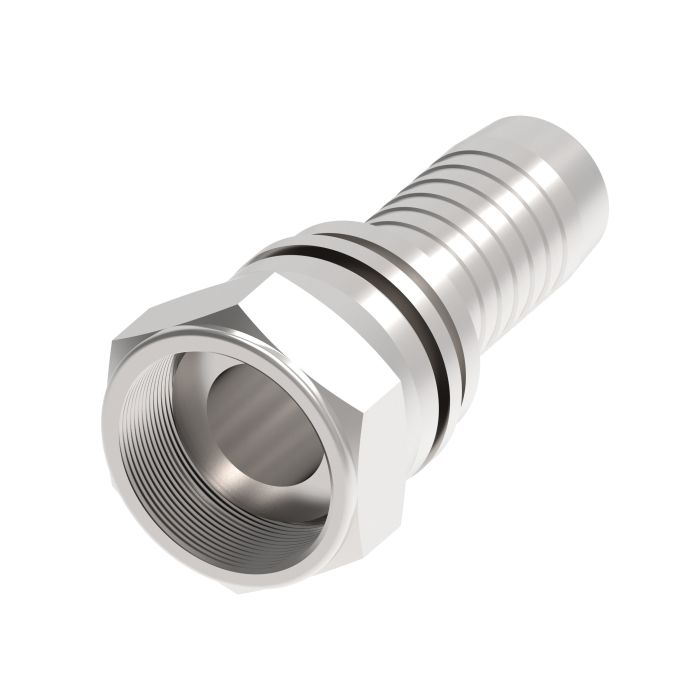

This Aeroquip Reusable FTGS nipple assembly offers maximum durability in demanding conditions. Featuring innovative designs, this female SAE 37° fitting ensures safety and reliability across a wide range of configurations.

The Aeroquip Reusable FTGS is part of the Aeroquip sub-brand and is suitable for hose and tube connections.

SKU: FJ8587-0808-331

Supplier Part Number (MPN): FJ8587-0808-331

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 2.22 in	Angle Shape Straight	Compatible Hose ID 1/2 in	Connection Size 1 1/2 in	Connection Size 2 1/2 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Female SAE 37 deg JIC Swivel	Connection Type 2 Hose	Construction Style Crimp	Cut-Off Factor 1.1 in	Dimensions 2.22 in L	End Connection Torque 33 to 40 lb-ft	Finish Passivate	Fitting Type Nipple	For Use With FC363, FC364 and FC563 Series Hoses	Hex Size 0.87 in	Hose Dash Size 08	Inside Diameter 0.41 in	Material Stainless Steel	Material Construction 316 Stainless Steel	Maximum Operating Pressure 5300 psi	Operating Temperature -54 to 204 deg C	Series FJ8587 Series	Thread Sealant Without Thread Sealant	Thread Size 3/4-16

Product Questions & Answers (1)

Question by: Hubert P on May 8, 2025, 8:25 PM

Reckon this FTGS fitting will hold up alright in a hydraulic system running near its max pressure?

Answer by: Customer Support on May 10, 2025, 6:39 AM

These Aeroquip FTGS fittings are made for durability, even when things get tough. They are designed to handle demanding conditions in hydraulic systems.
