Aeroquip Reusable FTGS - Code

Description & Features

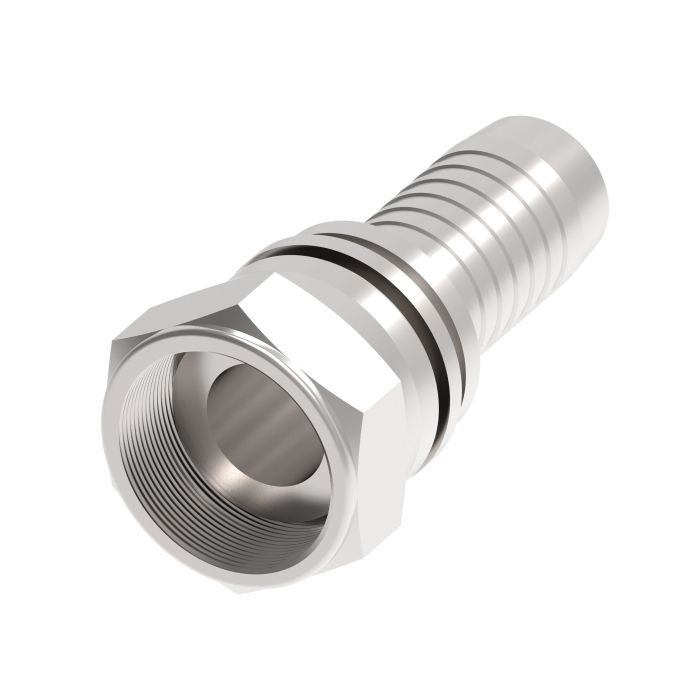

This Aeroquip Reusable FTGS nipple assembly features a female SAE 37 end and a line/hose/tube end. It is designed for maximum durability under harsh operating conditions and offers a wide range of styles and configurations.

Aeroquip's innovative designs ensure safety and reliability in demanding applications.

SKU: FJ8587-2020-331

Supplier Part Number (MPN): FJ8587-2020-331

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 2.74 in	Angle Shape Straight	Compatible Hose ID 1-1/4 in	Connection Size 1 1-1/4 in	Connection Size 2 1-1/4 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Female SAE 37 deg JIC Swivel	Connection Type 2 Hose	Construction Style Crimp	Cut-Off Factor 1.52 in	Dimensions 2.74 in L	Fitting Type Nipple	For Use With FC363, FC364 and FC563 Series Hoses	Hex Size 2 in	Hose Dash Size 20	Inside Diameter 1.05 in	Material Stainless Steel	Material Construction 316 Stainless Steel	Maximum Operating Pressure 1000 psi	Operating Temperature -54 to 204 deg C	Series FJ8587 Series	Thread Sealant Without Thread Sealant	Thread Size 1-5/8-12

Product Questions & Answers (1)

Question by: Darryl H on Jul 9, 2025, 8:05 AM

Can this FTGS fitting handle some serious vibration without losin' its seal?

Answer by: Customer Support on Jul 11, 2025, 6:00 AM

Designed for maximum durability, this Aeroquip FTGS fitting is built to maintain a reliable connection even under harsh operating conditions like vibration.
