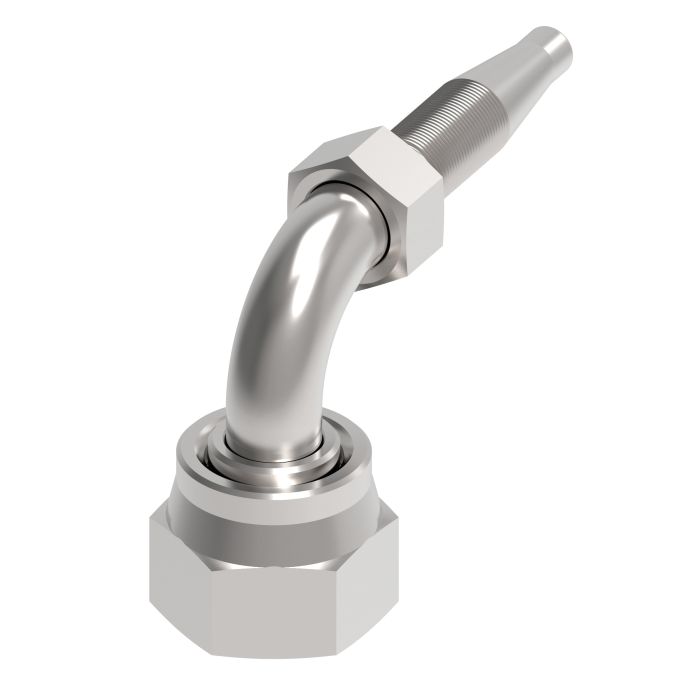

Aeroquip Fitting (REUS) ORS

Description & Features

This Aeroquip Fitting (REUS) ORS is a nipple assembly made from carbon steel. It is suitable for a wide range of applications, offering a durable and dependable connection. This fitting is designed to cut assembly times and boost production.

The fitting features a female ORS end with a size of 0.5625 and a male UNF end with a size of 0.4375. The hex size is 0.63, and it is compatible with a hose dash size of -4.

SKU: FJ8734-0404S

Supplier Part Number (MPN): FJ8734-0404S

Specifications

a Dimensions 2.41 in	Angle Shape 90 deg	Compatible Hose ID 1/4 in	Connection Size 1 1/4 in	Connection Size 2 1/4 in	Connection Type Female ORFS Swivel, Hose	Connection Type 1 Female ORFS Swivel	Connection Type 2 Hose	Construction Style Reusable	Cut-Off Factor 0.72 in	Drop Dimensions 0.88 in	End Connection Torque 18 to 20 lb-ft	End Type 2 UNF	Finish Dura-Kote™	Fitting Type 90 deg Elbow	For Use With 1509 Series Hoses	Hex Size 0.69 x 0.63 in	Hose Dash Size 04	Inside Diameter 0.17 in	Item Type Nipple Assembly	Material Steel	Material Construction Carbon Steel	Operating Temperature -40 to 212 deg F	Series FJ8734 Series	Thread Sealant Without Thread Sealant	Thread Size 9/16-18

Product Questions & Answers (1)

Question by: Wes A on Apr 14, 2025, 8:14 PM

So, this here fitting has a female ORS end and a male UNF end... what size are each of those?

Answer by: Customer Support on Apr 16, 2025, 8:40 AM

The female ORS end measures 0.5625, while the male UNF end is 0.4375.
