AEROQUIP REUSABLE - CODE

Description & Features

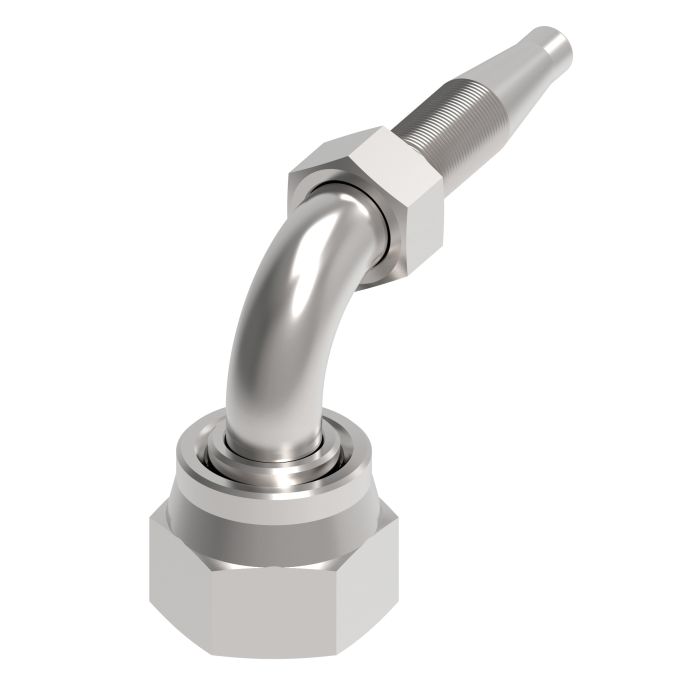

This carbon steel nipple assembly connects an O-Ring Face Seal (ORS) female end to a UN male end, making it well suited for hydraulic hose assemblies where a reliable, leak-resistant connection is required. With a hose dash size of -16 and a hex size of 1.25, it is sized for medium-to-large hydraulic lines commonly found in industrial and mobile equipment.

Part of the Aeroquip FJ8734 Series, this reusable fitting is designed to be disassembled and reassembled without replacing the fitting body, reducing material waste and helping to cut assembly times in maintenance and production environments. The carbon steel construction provides durability across a wide range of hydraulic applications.

SKU: FJ8734-1616S

Supplier Part Number (MPN): FJ8734-1616S

Specifications

a Dimensions 4.82 in	Angle Shape 90 deg	Compatible Hose ID 1 in	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Female ORFS Swivel, Hose	Connection Type 1 Female ORFS Swivel	Connection Type 2 Hose	Construction Style Reusable	Cut-Off Factor 1.88 in	Drop Dimensions 2.27 in	End Connection Torque 92 to 100 lb-ft	Finish Dura-Kote™	Fitting Type 90 deg Elbow	For Use With 1509 Series Hoses	Hex Size 1.62 x 1.25 in	Hose Dash Size 16	Inside Diameter 0.82 in	Item Type Nipple Assembly	Material Steel	Material Construction Carbon Steel	Operating Temperature -40 to 212 deg F	Series FJ8734 Series	Thread Sealant Without Thread Sealant	Thread Size 1-7/16-12

Product Questions & Answers (1)

Question by: Melvin G on Aug 25, 2025, 7:41 AM

So this thing lets me take it apart and reuse it, right? How many times can it handle being reassembled without wearing out?

Answer by: Customer Support on Aug 27, 2025, 6:17 AM

While these Aeroquip fittings are reusable to cut down on waste and assembly time, there isn't a specific number of reassemblies they are rated for. It really depends on the application, how carefully it's put together, and the condition of the threads each time. Just be sure to inspect it for wear before each use.
