Aeroquip GATOR Hose FIT.

Description & Features

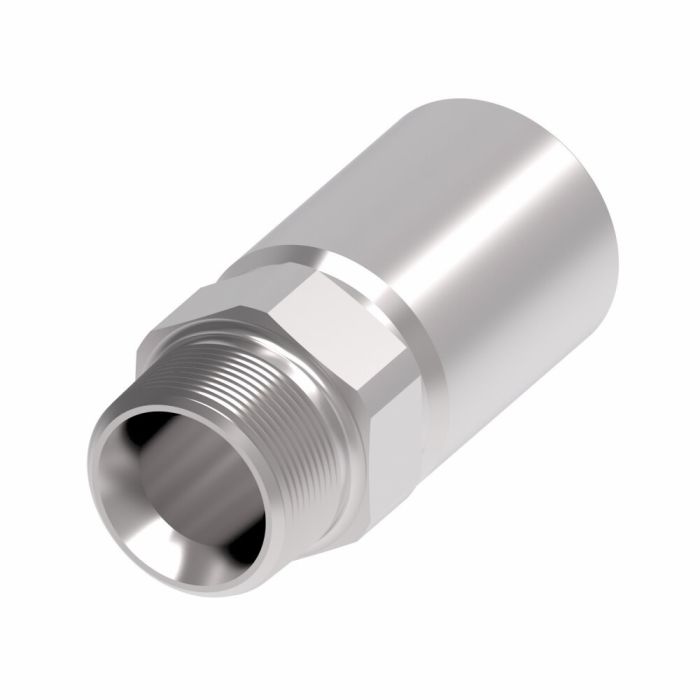

Designed for use with -20 dash size hose, this carbon steel swage fitting from the Aeroquip Gator Hose FIT line connects a male NPTF end to a hose or line termination. Dura-Kote plating provides corrosion resistance suited to demanding hydraulic service environments.

The Gator swage series is structured around mix-and-match compatibility, allowing a wide range of end styles and configurations to be combined without stocking complete pre-assembled assemblies. This flexibility supports leaner inventory management across multiple hose sizes and connection types.

SKU: FJ9372-2020S

Supplier Part Number (MPN): FJ9372-2020S

Alternate Part Numbers: C1CW53

Specifications

a Dimensions 4.35 in	Angle Shape Straight	Compatible Hose ID 1-1/4 in	Connection Size 1 1-1/4 in	Connection Size 2 1-1/4 in	Connection Type Hose, MNPT	Connection Type 1 Male NPTF	Connection Type 2 Hose	Construction Style Swage	Cut-Off Factor 1.99 in	Dimensions 4.35 in L	Finish Dura-Kote™	Fitting Type Hose Fitting	For Use With FC385, FC701 and FC702 Series Hoses	Hex Size 1-7/8 in	Hose Dash Size 20	Inside Diameter 1.02 in	Material Steel	Material Construction Carbon Steel	Maximum Operating Pressure 2500 psi	Operating Temperature -40 to 150 deg F	Series FJ9372 Series	Thread Sealant Without Thread Sealant	Thread Size 1-1/4-11-1/2

Product Questions & Answers (1)

Question by: Jimmy A on Dec 15, 2025, 6:14 AM

Reckon this fitting would hold up okay in a hydraulic system on farm equipment, you think?

Answer by: Customer Support on Dec 16, 2025, 8:54 PM

Dura-Kote plating on this Aeroquip fitting should provide pretty good corrosion resistance, which is what you want in demanding hydraulic environments like farming. It's made of carbon steel, so it's built tough.
