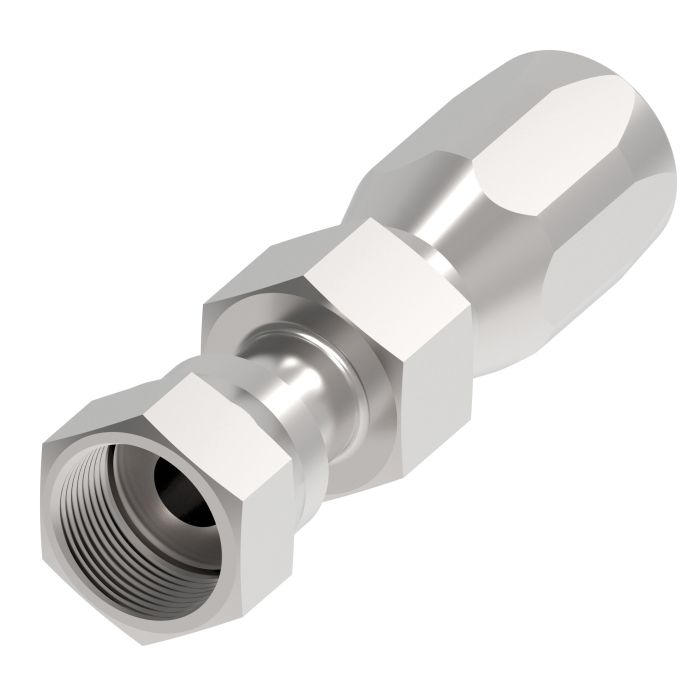

Aeroquip ORS Crimp FIT 4 F 0RS

Description & Features

This Aeroquip ORS Crimp FIT connects a -4 hose to a female ORS swivel end. The fitting is made from carbon steel, offering durability for demanding hydraulic applications.

Engineered for performance and maximum uptime, the Aeroquip ORS Crimp FIT 4 F 0RS features Dura-Kote plating, providing superior corrosion resistance and extending hose assembly life. The female end size is 0.5625 with a 0.62 hex size.

SKU: FJ9480-0404S

Supplier Part Number (MPN): FJ9480-0404S

Specifications

Brand Aeroquip® by Danfoss	Angle Shape Straight	Compatible Hose ID 1/4 in	Connection Size 1 1/4 in	Connection Size 2 1/4 in	Connection Type Female ORFS Swivel, Hose	Connection Type 1 Female ORFS Swivel	Connection Type 2 Hose	Construction Style Crimp	Cut-Off Factor 1.54 in	Dimensions 2.43 in L x 0.69 in W x 0.69 in H	End Connection Torque 18 to 20 lb-ft	Finish Dura-Kote™	Fitting Type Hose Fitting	For Use With 3130, 37AL and 3740 Series Hoses	Hex Size 0.62 x 0.69 in	Hose Dash Size 04	Inside Diameter (inch) 0.15 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Series FJ9480 Series	Thread Sealant Without Thread Sealant	Thread Size 9/16-18	Tube Outside Diameter 1 IN 1/4 in

Product Questions & Answers (1)

Question by: Rick C on Dec 23, 2025, 1:01 PM

Will this fitting hold up okay in a hydraulic system for farm equipment, or is it more for lighter-duty stuff?

Answer by: Customer Support on Dec 24, 2025, 3:42 PM

Dura-Kote plating gives this Aeroquip ORS Crimp FIT fitting good corrosion resistance, so it should last well even with the dirt and moisture farm equipment deals with. It's made from carbon steel, which is a pretty durable material for hydraulic applications.
