Aeroquip Crimp FittingS - Code

Description & Features

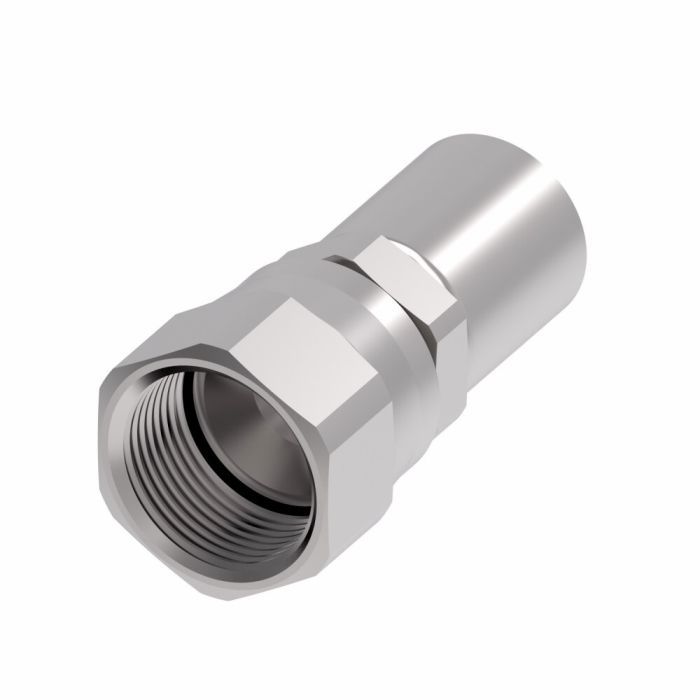

This Aeroquip Crimp Fitting features a female SAE 37° end for secure connection. Designed for maximum durability under harsh conditions, it offers a wide range of styles and configurations to meet diverse application needs. Innovative designs ensure safety and reliability in demanding environments.

The Aeroquip Crimp FittingS - Code is suitable for various fluid compatibility requirements. This fitting assembly is part of the Aeroquip sub-brand, known for high-quality hose fittings. The female end ensures a tight seal, while the SAE 37° connection provides a reliable, leak-free connection.

SKU: FJ9587-2020-331

Supplier Part Number (MPN): FJ9587-2020-331

Specifications

Brand Aeroquip® by Danfoss	Connection Size 1 1-1/4 in	Connection Size 2 1-1/4 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 37 deg JIC Swivel	Cut-Off Factor 1.52 in	Dimensions 2.84 in L	End Gender 1 Female	Fitting Type Crimp Fitting	For Use With FC363, FC364 and FC563 Series PTFE Hoses	Hex Size 2 in	Hose Dash Size 20	Material Stainless Steel	Material Construction Stainless Steel	Series FJ9587 Series	Thread Sealant Without Thread Sealant	Thread Size 1-7/8-12

Similar Products

Model Number	Connection Size 1	Connection Size 2	Hose Dash Size
FJ9587-0808-331	1/2 in	1/2 in	08
FJ9587-0808S	1/2 in	1/2 in	08
FJ9587-1212-331	3/4 in	3/4 in	12
FJ9587-1212S	3/4 in	3/4 in	12
FJ9587-1616-331	1 in	1 in	16
FJ9587-1616S	1 in	1 in	16
FJ9587-2020S	1-1/4 in	1-1/4 in	20
FJ9587-2424-331	1-1/2 in	1-1/2 in	24
FJ9587-3232-331	2 in	2 in	32

Product Questions & Answers (1)

Question by: Neil P on Nov 24, 2025, 4:01 PM

Will this fitting hold up if I'm using it in a hydraulic system that sees pretty high pressures on a regular basis?

Answer by: Customer Support on Nov 25, 2025, 9:01 PM

Maximum durability under harsh operating conditions is one of the key features of this Aeroquip crimp fitting, so it should be well-suited for demanding hydraulic systems.
