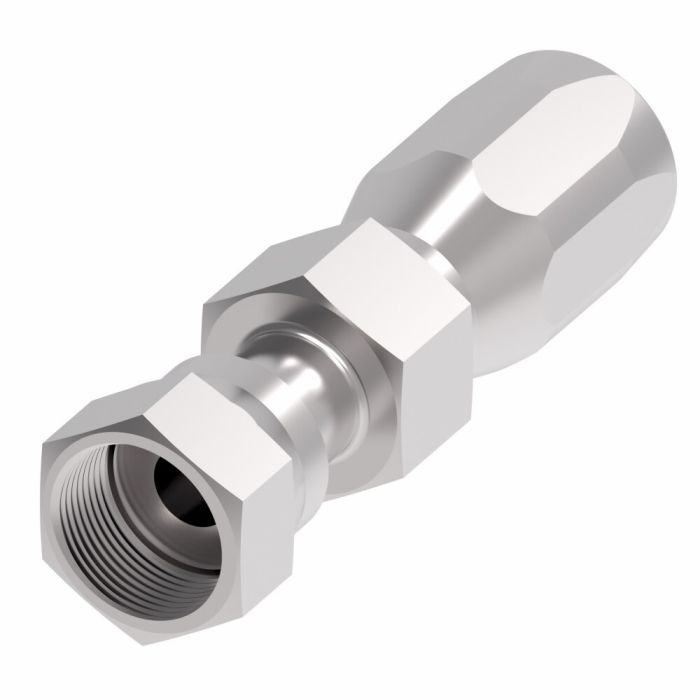

Aeroquip Reusable FTGS - Code

Ask A Question

Description & Features

The Aeroquip Reusable FTGS - Code by Danfoss Power Solutions is designed for a range of industrial applications. Crafted from carbon steel this fitting ensures durability and reliability even under demanding conditions.

Engineered with a female FPT end type and adaptable to a line/hose/tube it meets SAE 100R5 certification standards. The fitting cuts assembly times and enhances production efficiency making it an ideal choice for heavy-duty operations.

Measuring a hex size of 1.88 inches it is compatible with a hose dash size of -20.

Supplier Part Number: FJ9706-2020S

Specifications

a Dimensions
3.48 in
Compatible Hose ID
1-1/4 in
Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Reusable
Cut-Off Factor
2.12 in
Dimensions
4.06 in L x 1.88 in W x 2.16 in H
End Gender 1
Female
End Size 1
20
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
302A, 303, 1503, 2580, 2651, FC234, FC300, FC321, FC350 and FC355 Series Hoses
Hex Size
1.875 x 1.614 in
Hose Dash Size
20
Inside Diameter
1.02 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Reusable Socket Hex Size
44 mm
Segment Code
C
Series
FJ9706 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-11/16-12
Thread Type
UN

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Debbie W on Sep 8, 2025, 10:18 AM
trying to match up a reusable Aeroquip fitting, is FJ9706-2020S the one with a female FPT end for a -20 hose
Answer by: Customer Support on Sep 10, 2025, 9:06 AM
The key callouts on FJ9706-2020S are a female FPT end on one side and compatibility with hose dash size -20, with the other end listed for line, hose, or tube use.
Question by: Roger S on Oct 26, 2025, 6:21 AM
Will this FTGS fitting hold up in a heavy-duty hydraulic setup, like on a construction rig?
Answer by: Customer Support on Oct 27, 2025, 1:04 PM
For heavy-duty use, this Aeroquip fitting is a solid choice. Crafted from carbon steel, it's durable enough to withstand demanding conditions.
Question by: Darryl M on May 26, 2025, 4:01 PM
got a -20 hose I'm trying to terminate with a female pipe thread connection, this the right fitting for that?
Answer by: Customer Support on May 27, 2025, 8:06 PM
For a -20 hose needing a female FPT termination, yes, that's exactly what this fitting is built around. The FJ9706-2020S pairs a female FPT end with a reusable fitting assembly sized for -20 hose dash size, with a 1.88 inch hex. Being reusable also means you can disassemble and reinstall it without replacing the fitting each time, which cuts down on waste and keeps things moving on the shop floor.
