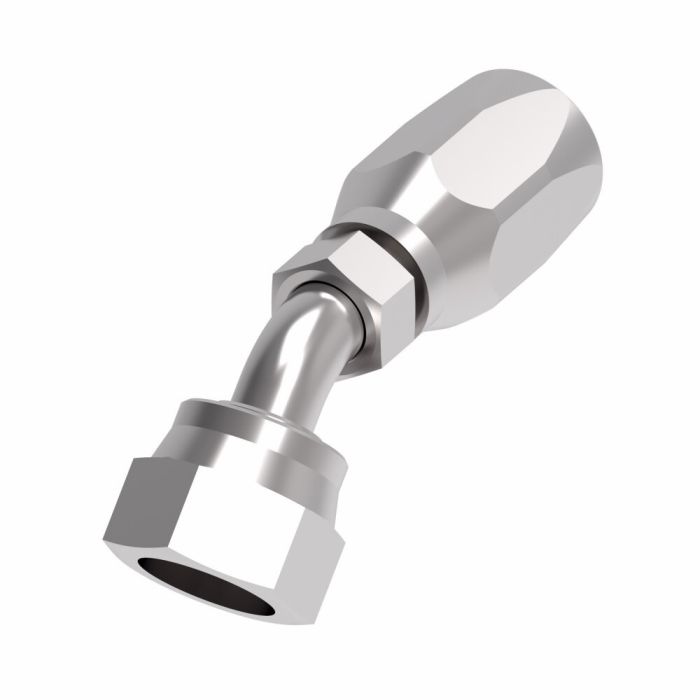

AEROQUIP 100R5 #4 FORS 45 X 4 HS

Description & Features

Designed for 100R5 hose assemblies, this carbon steel 45-degree elbow fitting from Aeroquip's FJ9707 Series connects a Female Pipe Thread end to a hose end in a compact, angled configuration. The swivel female connection on the pipe side, with a 0.5625-inch thread diameter and 0.63-inch hex, allows for easy alignment during installation, helping reduce assembly time in tight routing situations.

The Aeroquip 100R5 #4 Fors 45 X 4 Hs is a reusable fitting assembly, making it well-suited for maintenance-intensive hydraulic systems where field serviceability matters. At a -4 hose dash size and 0.1 lb package weight, it is a lightweight component appropriate for a wide range of hydraulic line applications. Carbon steel construction provides reliable durability across standard industrial hydraulic service conditions.

SKU: FJ9707-0404S

Supplier Part Number (MPN): FJ9707-0404S

Alternate Part Numbers: C1FZ60

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 1.96 in	Compatible Hose ID 1/4 in	Connection Size 1 1/4 in	Connection Size 2 1/4 in	Connection Type Female ORFS Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female ORFS Swivel	Construction Style Reusable	Cut-Off Factor 1.21 in	Dimensions 1.96 in L	Drop Dimensions 10 mm	End Connection Torque 18 to 20 lb-ft	End Gender 1 Female	End Size 1 9/16 in	Finish Dura-Kote™	Fitting Type 45 deg Elbow	For Use With 302A, 303, 1503, 2580, 2651, FC234, FC300, FC321, FC350 and FC355 Series Hoses	Hex Size 0.68 x 0.63 in	Hose Dash Size 04	Inside Diameter 0.13 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code C	Series FJ9707 Series	Thread Sealant Without Thread Sealant	Thread Size 9/16-18	Thread Type UNF

Similar Products

Model Number	Connection Size 1	Connection Size 2	Hose Dash Size
FJ9707-0808S Steel Reusable ORS Fitting	1/2 in	1/2 in	08
FJ9707-0606S Steel Reusable ORS Fitting	3/8 in	3/8 in	06
FJ9707-1010S	5/8 in	5/8 in	10
FJ9707-1212S	3/4 in	3/4 in	12
FJ9707-1616S	1 in	1 in	16
FJ9707-2020S	1-1/4 in	1-1/4 in	20
FJ9707-2424S	1-1/2 in	1-1/2 in	24
