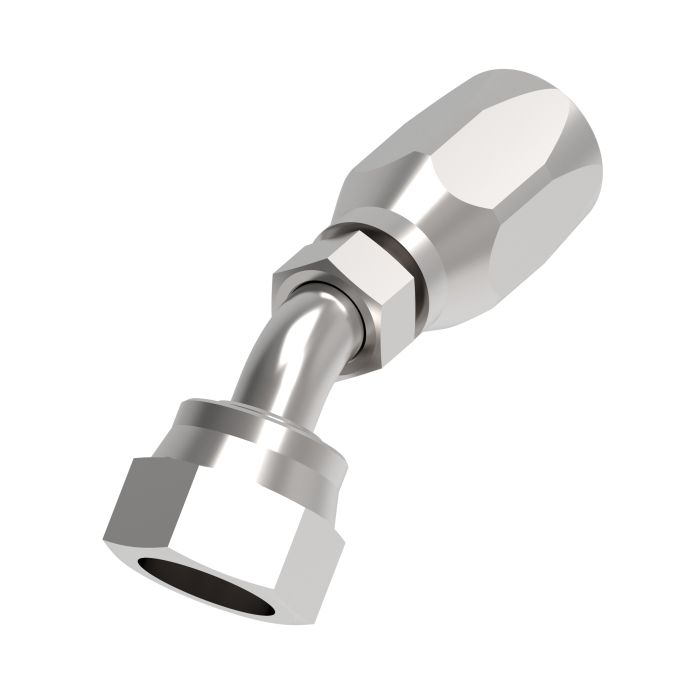

main product photo

Aeroquip Reusable FTGS - Code

Ask A Question

Description & Features

Designed for demanding hydraulic line assemblies, this carbon steel, 45-degree swivel elbow fitting from the Eaton Aeroquip FJ9707 Series connects a -16 hose dash size to a female pipe thread (FPT) end, making it well suited for installations where angled routing is required. The swivel design at the ORS end allows for easier alignment during assembly, reducing make-up time in production environments.

The Aeroquip Reusable FTGS - Code fitting is built for a wide range of industrial hydraulic applications and is rated for repeated reuse, supporting cost-effective maintenance practices. With a hex size of 1.63 inches and a drop dimension of 0.94 inches, the fitting is sized for -16 hose assemblies. Packaged and sold individually, it carries a package weight of 0.79 lb.

SKU: FJ9707-1616S

Supplier Part Number (MPN): FJ9707-1616S

Alternate Part Numbers: C1EU64

Specifications

a Dimensions
3.62 in
Compatible Hose ID
1 in
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Reusable
Cut-Off Factor
2.35 in
Dimensions
5.01 in L x 1.63 in W x 3.04 in H
Drop Dimensions
0.94 in
End Gender 1
Female
End Size 1
16
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
302A, 303, 1503, 2580, 2651, FC234, FC300, FC321, FC350 and FC355 Series Hoses
Hex Size
1.625 x 1.141 in
Hose Dash Size
16
Inside Diameter
0.82 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Reusable Socket Hex Size
37 mm
Segment Code
C
Series
FJ9707 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-7/16-12
Thread Type
UN

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Norm S on Jun 8, 2025, 2:19 PM
Just want to make sure - this fitting's got that swivel on one end, right? Makes lining things up easier?
Answer by: Customer Support on Jun 9, 2025, 4:44 PM
That's correct. The swivel at the ORS end of this Aeroquip fitting is designed for easier alignment during assembly, which can save you some time.
Question by: Dwayne J on Jun 1, 2025, 1:42 PM
trying to hook up a -16 hose, is FJ9707-1616S the 45 degree swivel elbow with a female pipe thread end?
Answer by: Customer Support on Jun 3, 2025, 1:05 PM
For a -16 hose assembly, FJ9707-1616S is a carbon steel 45 degree swivel elbow that mates a -16 hose dash size to a female pipe thread (FPT) end. The hex size is 1.63 inches and the listed drop dimension is 0.94 inches.
