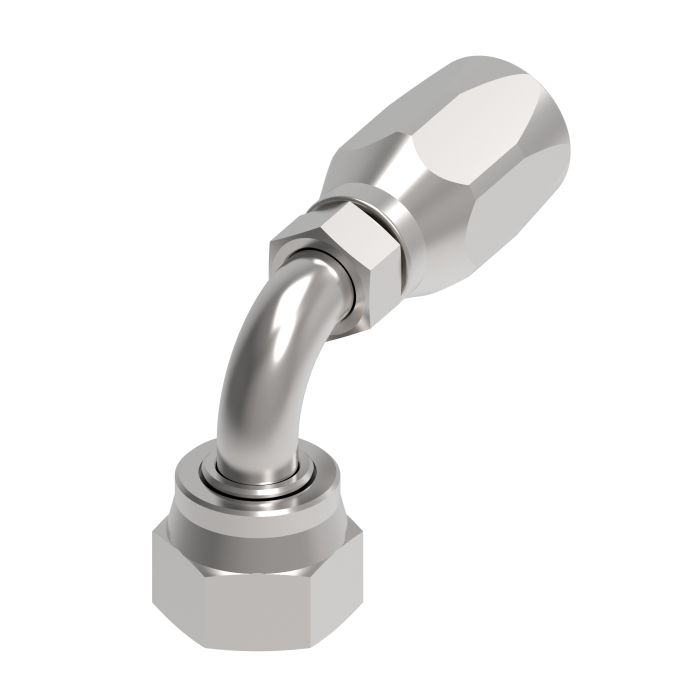

Aeroquip ORS Reuse FIT 12 FEM

Ask A Question

Description & Features

Designed for reusable hose assembly in hydraulic systems, this carbon steel fitting features an ORS swivel configuration with a 90-degree short elbow and a female threaded port connection. The -12 dash size and 1.37-inch hex provide a well-matched fit for standard hose and tube end connections in industrial fluid power applications.

The Aeroquip ORS Reuse Fit 12 Fem is part of Eaton Aeroquip's FJ9708 Series, engineered to reduce assembly time while maintaining reliable, leak-resistant connections across a wide range of hydraulic service conditions. Carbon steel construction supports durable performance in demanding environments, and the reusable design allows for disassembly and reassembly without replacing the fitting.

SKU: FJ9708-1212S

Supplier Part Number (MPN): FJ9708-1212S

Alternate Part Numbers: C1EQ51

Specifications

a Dimensions
3-3/4 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Reusable
Cut-Off Factor
2.18 in
Dimensions
4.43 in L x 1.37 in W x 3.08 in H
Drop Dimensions
1.88 in
End Gender 1
Female
End Size 1
12
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
302A, 303, 1503, 2580, 2651, FC234, FC300, FC321, FC350 and FC355 Series Hoses
Hex Size
1-3/8 in
Hose Dash Size
12
Inside Diameter
0.55 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Reusable Socket Hex Size
32 mm
Segment Code
C
Series
FJ9708 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-3/16-12
Thread Type
UN

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Bonnie K on Oct 29, 2025, 2:46 PM
Can this fitting handle hydraulic fluid okay?
Answer by: Customer Support on Oct 31, 2025, 6:11 AM
Carbon steel makes it durable for hydraulic systems, so you shouldn't have any problems there.
Question by: Pete A on Apr 6, 2026, 3:52 PM
Got a reusable -12 hose assembly I'm trying to keep going without swapping out fittings every time I pull it apart. This the kind of fitting that can handle that?
Answer by: Customer Support on Apr 7, 2026, 8:17 PM
Reusability is built right into this fitting's design. The FJ9708-1212S can be disassembled and reassembled without needing to replace the fitting itself, so you're not throwing parts away every time you pull the hose end apart. For a -12 dash size application, it's a solid choice when you need to service the same hose assembly more than once.
Question by: Scott R on Feb 26, 2026, 6:08 PM
got a -12 hose and need a 90 to tuck it in tight. is this the short elbow ORS swivel style?
Answer by: Customer Support on Feb 28, 2026, 11:41 AM
For tight routing, it’s a 90 degree short elbow with an ORS swivel configuration, built as a reusable hose assembly fitting for -12 dash size connections.
